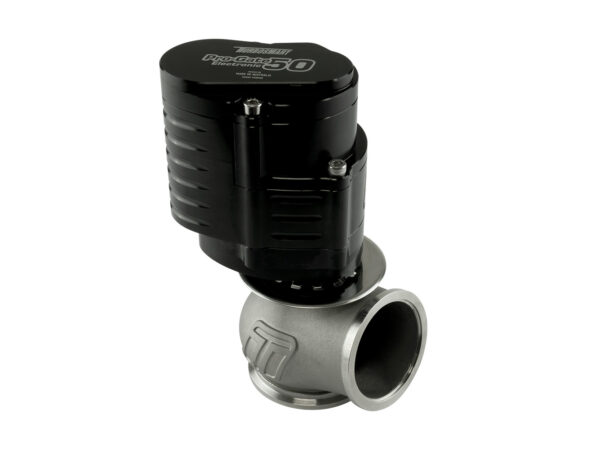

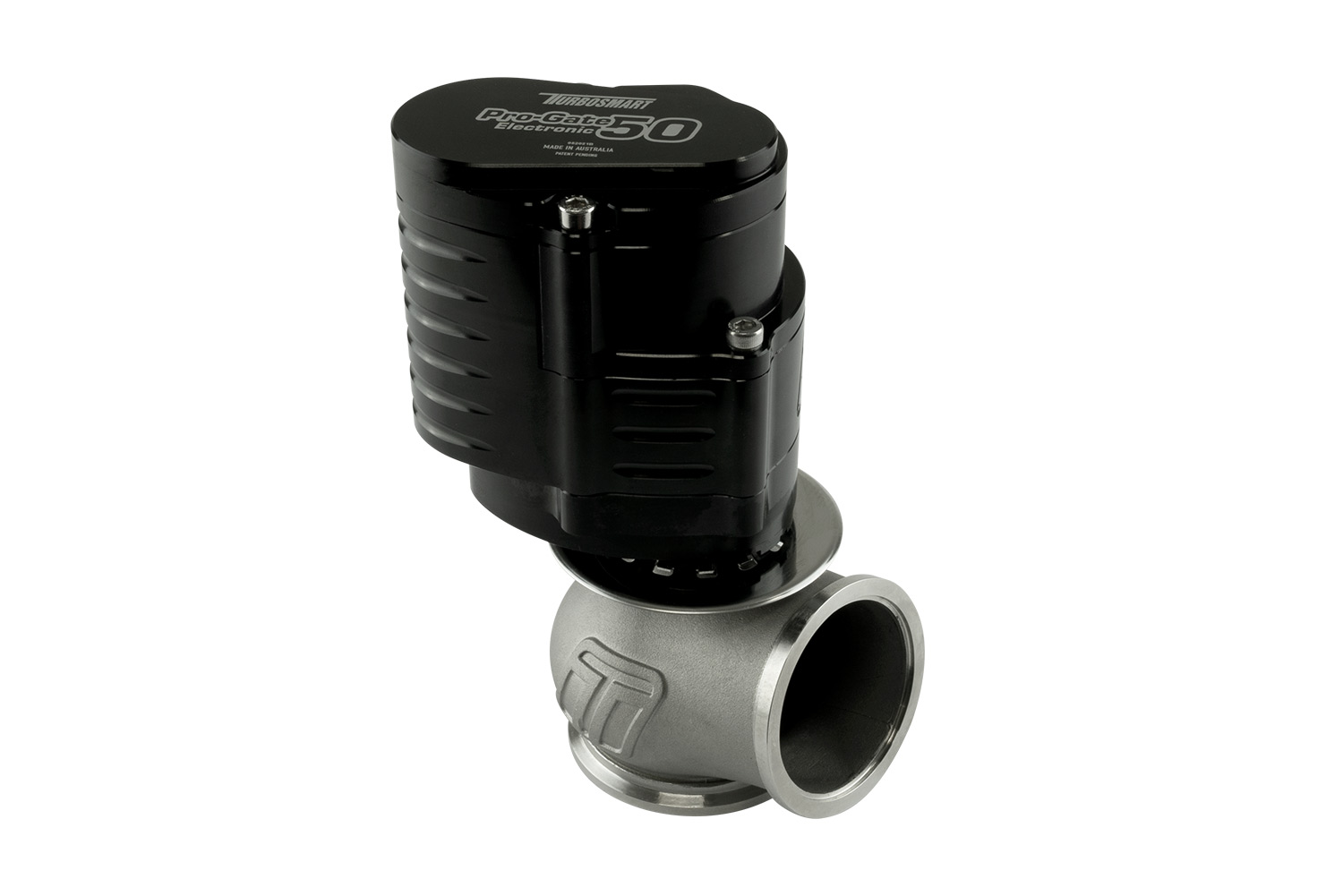

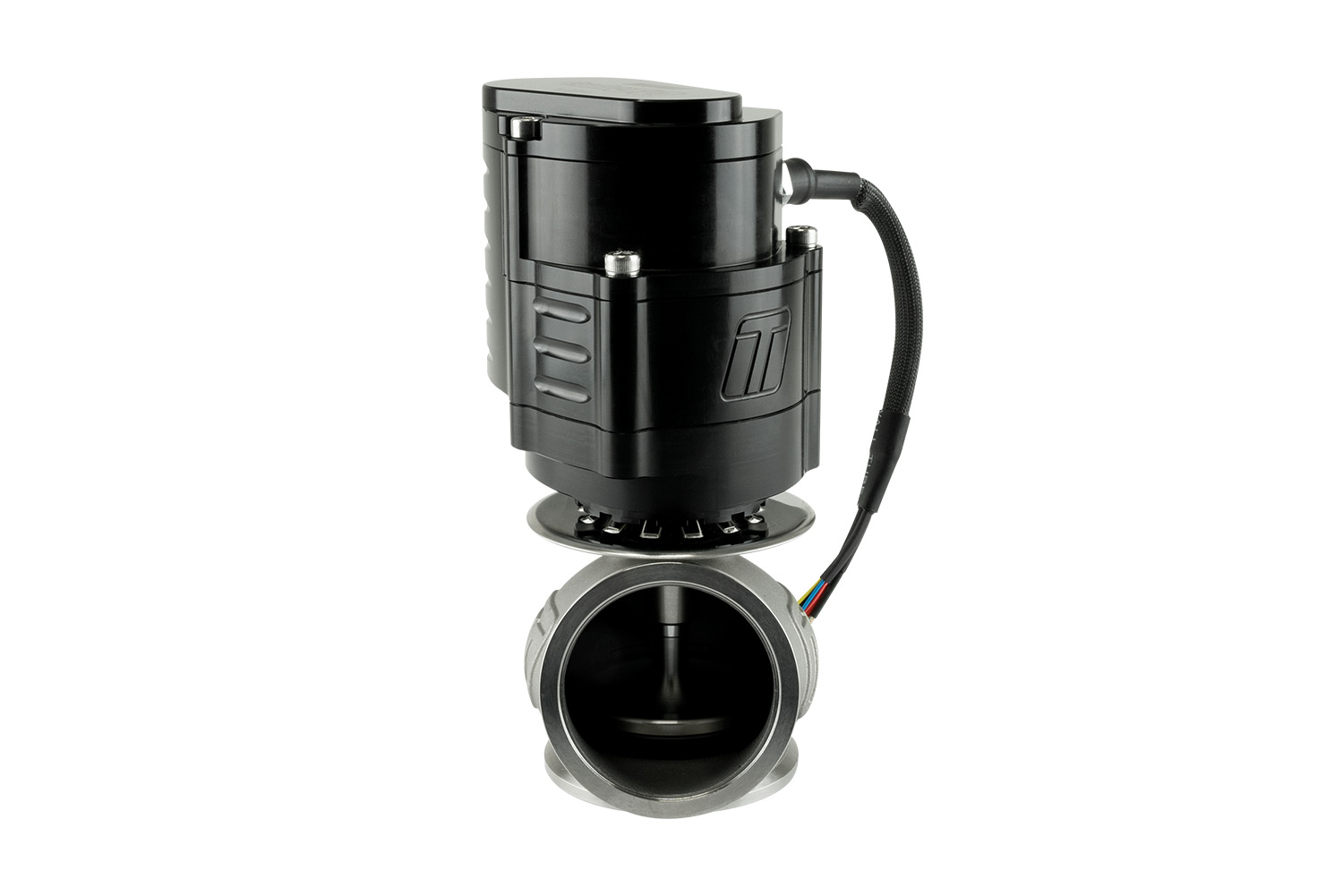

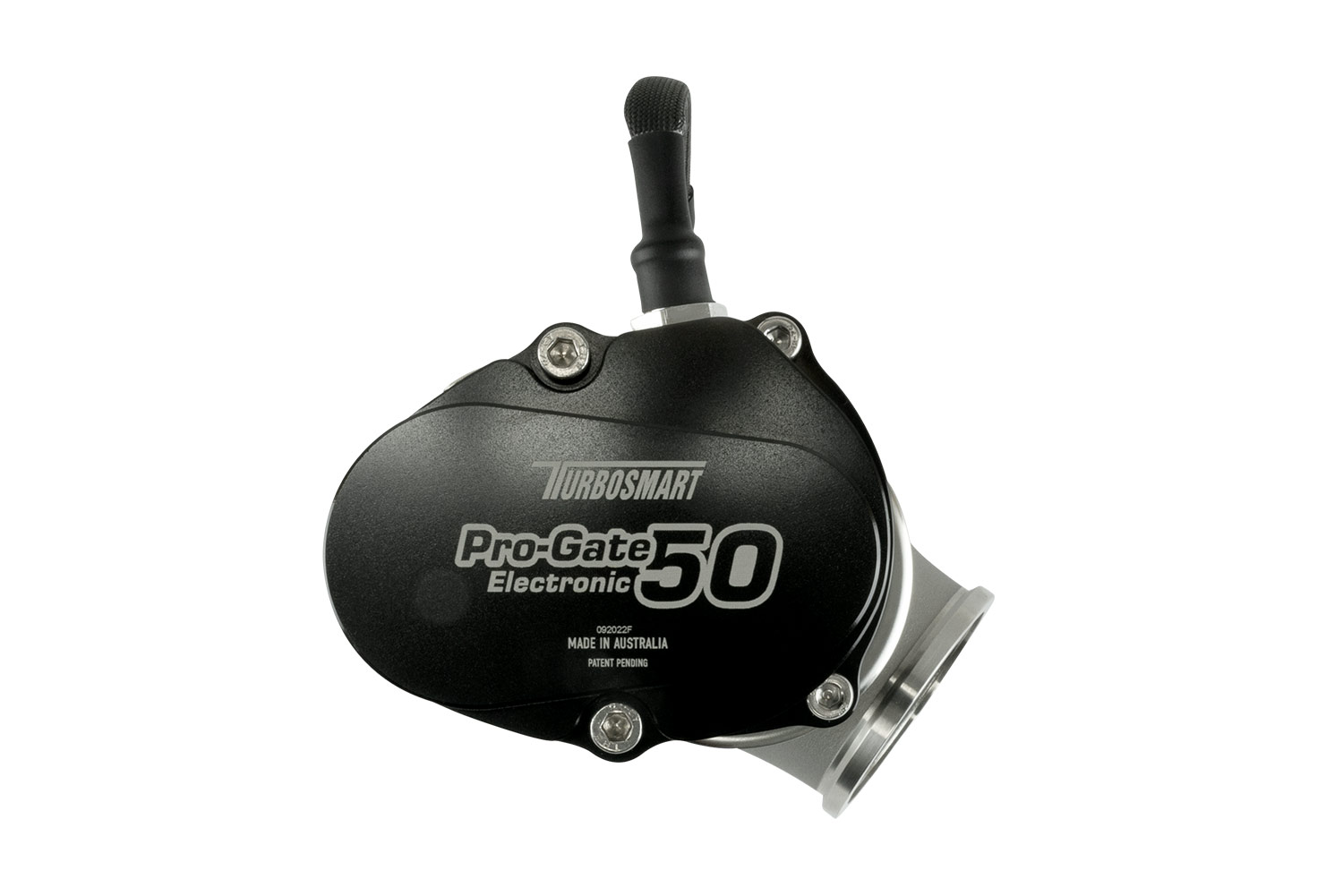

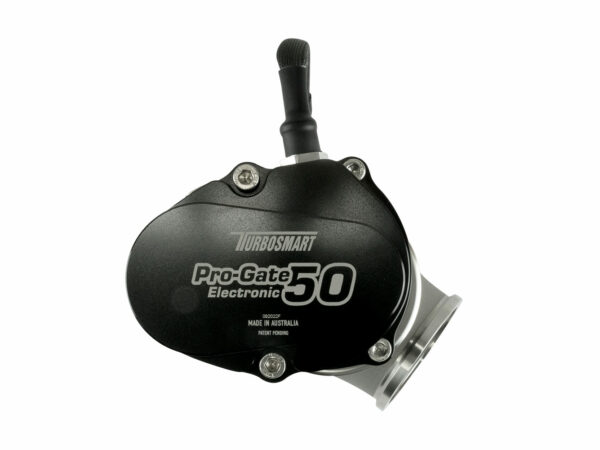

GenV Electronic ProGate50 Electronic External Wastegate
$1,155.50USD (Excl. Sales Tax)
Turbosmart’s Patent Pending, eWG50 is a fully electronic actuated wastegate – Built on the successful, class-leading GenV ProGate50 architecture, now with the kind of control never seen before. The eGG50 ProGate50 is a 50mm Electronic Wastegate which uses full electronic control without the limitation associated with traditional pneumatic control.
Starting with a Turbosmart’s GenV wastegate body, you can be confident the mounting orientation will match your existing manifold & outlet hardware. The GenV ProGate50 already had class-leading flow capacity & heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can also be sure of unparalleled control.
There are no springs, no hoses, no boost reference signal, nor any associated limitations. Gone are ‘Minimum’ boost levels associated with base spring pressure or heat-related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero up to ‘All of it’ – All from your laptop or tuning interface. The eGate range requires a Dual Half-Bridge input for control, much like how an electronic throttle body is controlled and the strategy is as good as your imagination & your ECU or controller will allow.
Don’t have an ECU that has a spare Dual Half-Bridge Output? No problem at all, checkout the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independant channels via simple PWM inputs, or more advanced CAN based inputs – All onboard & in the one unit!

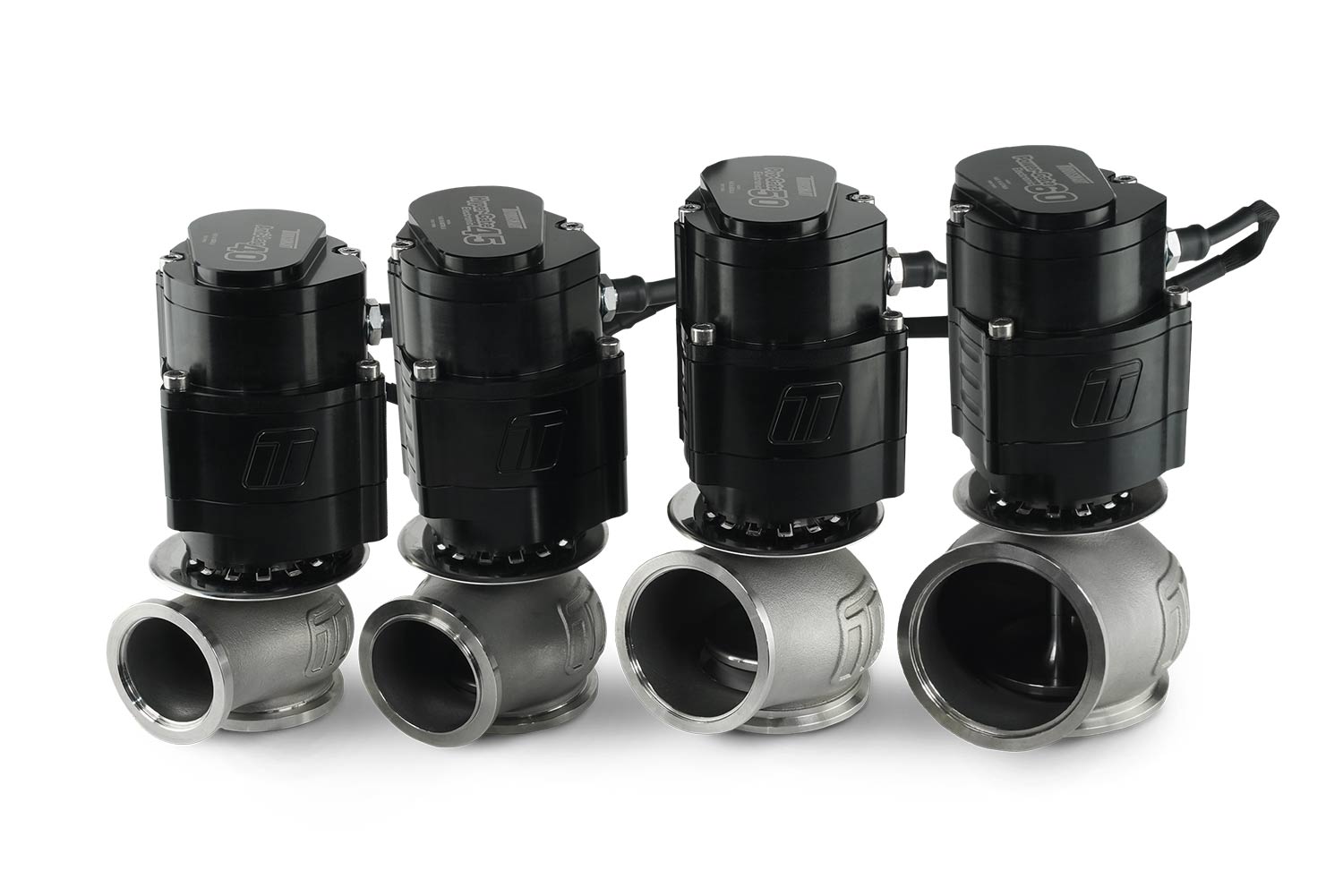

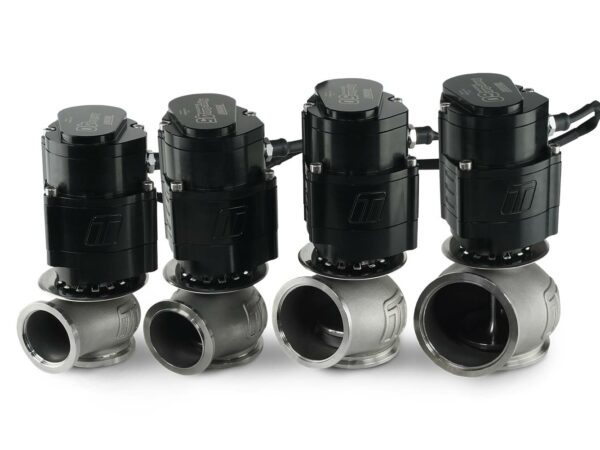

40mm CompGate40 eWG – TS-0552-1502
45mm HyperGate45 eWG –TS-0553-1502
50mm ProGate50 eWG – TS-0554-1502
60mm PowerGate60 eWG –TS-0555-1502
StriaghtGate50 eWG – TS-0565-1002
Class Leading, CFD & Bench Validated Flow Performance
Nitronic 60 Valve Guide & High Temp 347 SS Body
Liquid Cooled, Electronic Actuator
Strap Type V-band clamps
User Adjustable Actuator Position
Onboard Analog 0-5V Wastegate Position Sensor
Onboard Analog 0-5V Actuator Temperature Sensor
Onboard Digital (PWM) Wastegate Position Sensor
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

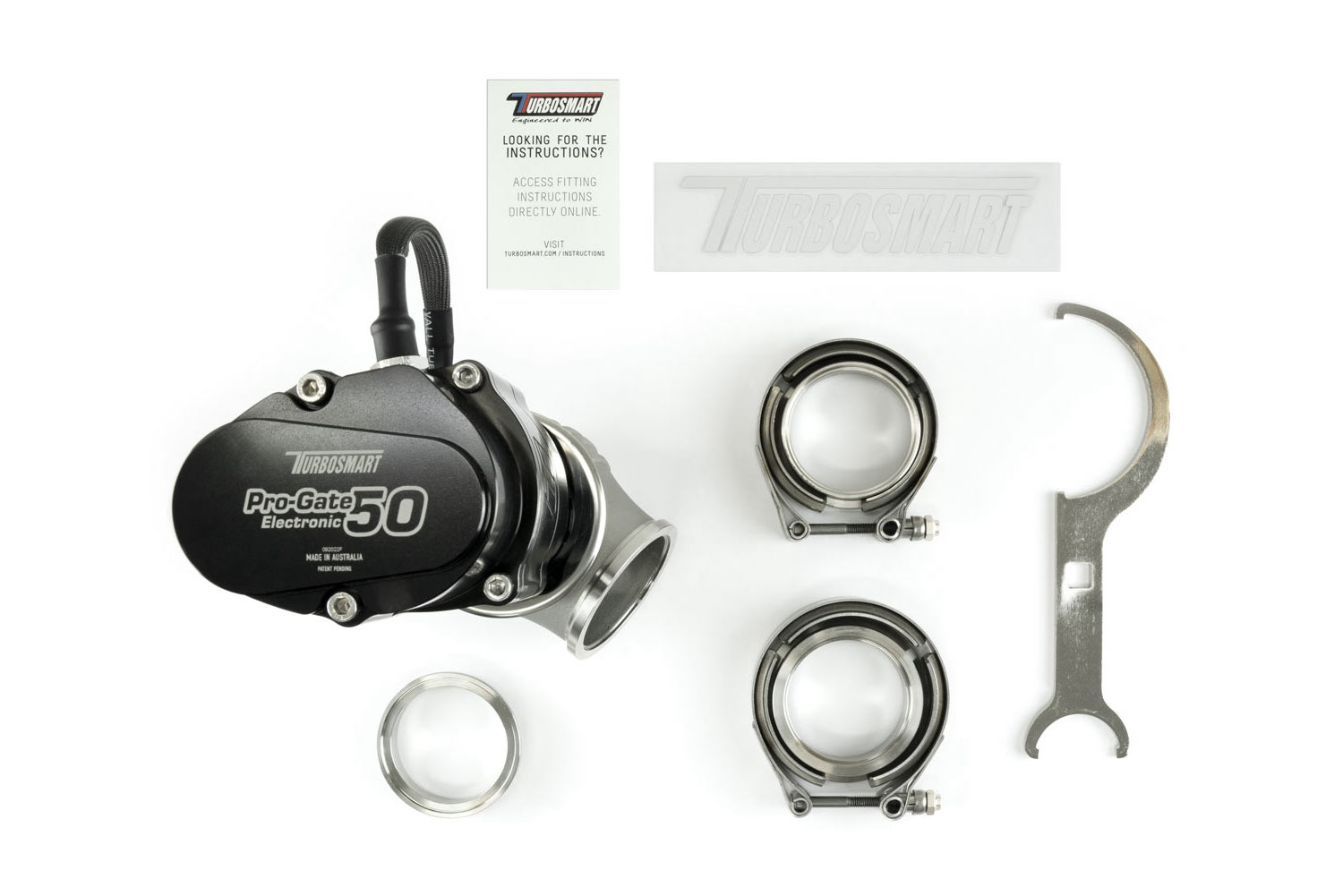

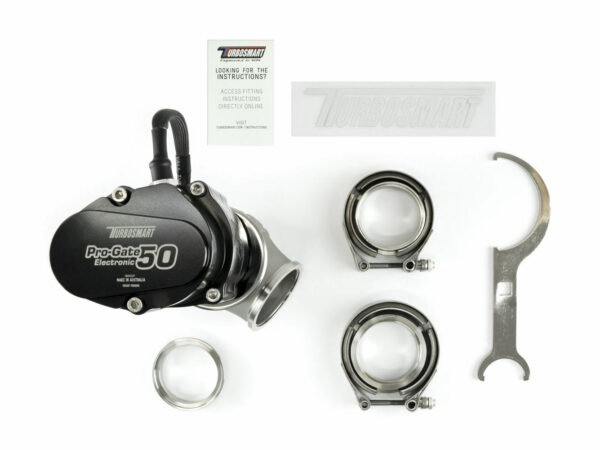

GenV ProGate50 Electronic Wastegate
Un-Termindated Flying Lead
GenV SS316 Valve Seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
GenV ProGate50 Weld Flange: Inlet
GenV ProGate50 Weld Flange: Outlet
GenV ProGate50 V-Band: Inlet
GenV ProGate50 V-Band: Outlet
GenV ProGate50 Replacement Nuts
GenV ProGate50 Slave Collar / Heatshield
GenV ProGate50 Valve Seat
GenV ProGate50 Valve & Guide Set
GenV eGate Replacement Motor
GenV eGate Replacement Sensor
GenV ProGate50 Sensor Cap Black
GenV ProGate50 Diaphragm Replacement Tool
GenV ProGate50 Weld Flange: Inlet (Alluminium)
GenV ProGate50 Weld Flange: Outlet (Alluminium)
1/8NPT to 6mm Hose End Adaptor
1/8NPT to -3AN Male to Male Adaptor
1/8NPT to -4AN Male to Male Adaptor
Hi-Temp Pushloc Tubing 1/4″ Black (3 Metres)
The answer is simple: Options. An Electronic Wastegate doesn’t care about the turbo pressure you are generating and it doesn’t use it to control boost like a pneumatic system. Rather, the gate position is independent of boost meaning it can be exactly where you want it at any time. IT can be predictive rather than responsive and the tuning window is not limited by the base spring pressure that is fitted to the gate because there are none. If you want to command the gate wide open at idle, you can – It’ll do whatever you want it to. Always.
How do I control an eGate?
You will need a Dual Half Bridge Output from your ECU, which is the same output you would normally use for an electronic throttle body. Unlike an electronic throttle however the current demands are higher & you will need to check with your ECU if it suitable. If it is not, some companies product suitable and matching H-bridge expanders that are suitable, alternatively Turbosmart produce the BlackBox, which is a Dual Channel Electronic Wastegate Controller which can take either a traditional PWM input, or work with more advanced strategies via CAN.
How Fast is it? Is it fast enough?
72mm per second – Full travel can be achieved I 290ms. It’s fast. Please note, with the right strategy and hook-up method you can have a pneumatic gate respond faster, however all data we have seen shows the eGate’s are more than fast enough to control boost on virtually all real-world boost control applications.
How much Boost Can it make?
Wrong question. You should be asking how much drive pressure can the gate close against, because that is the only limitation of the eGate. It doesn’t care how much boost you make; its job is to control the gas flow around your turbocharger & handle the drive pressure you produce.
How much Drive Pressure Can it handle?
The same Electronics are used for all GenV eGate’s and because the valve diameter differs through the range the answer is different per gate. The eWG60 can drive home against 80PSI of drive pressure while the eWG40 can drive home against 160psi & do so at full speed. Your drive pressure will be a result of how hard you are pushing your turbo with 1:1 (Drive pressure to boost pressure) common on efficient applications, however, drive pressure ratio does increase one you are pushing your turbo harder and closer to the edge of its efficiency.
Can I use this instead of C02?
Yes, you can. In fact, it’s one of the situations that an eGate would be ideal for. You won’t need C02 or compressed Gas in your vehicle, won’t forget to refill it or turn it on before staging. You will however have a gate that will do exactly what you tell it too, without any of the extra hardware and weight.
