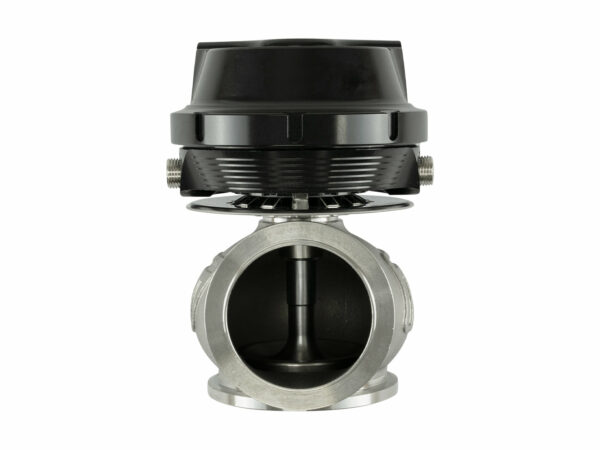

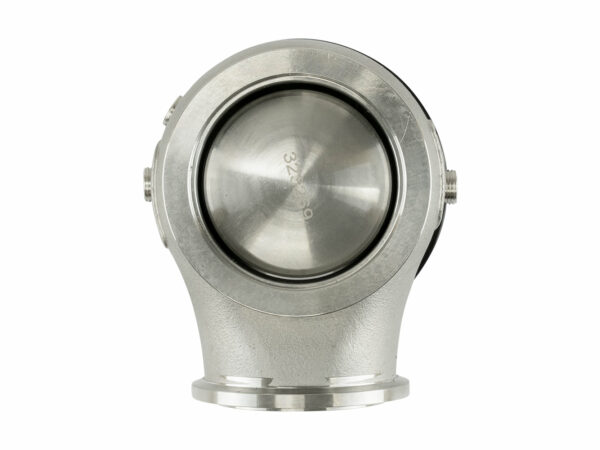

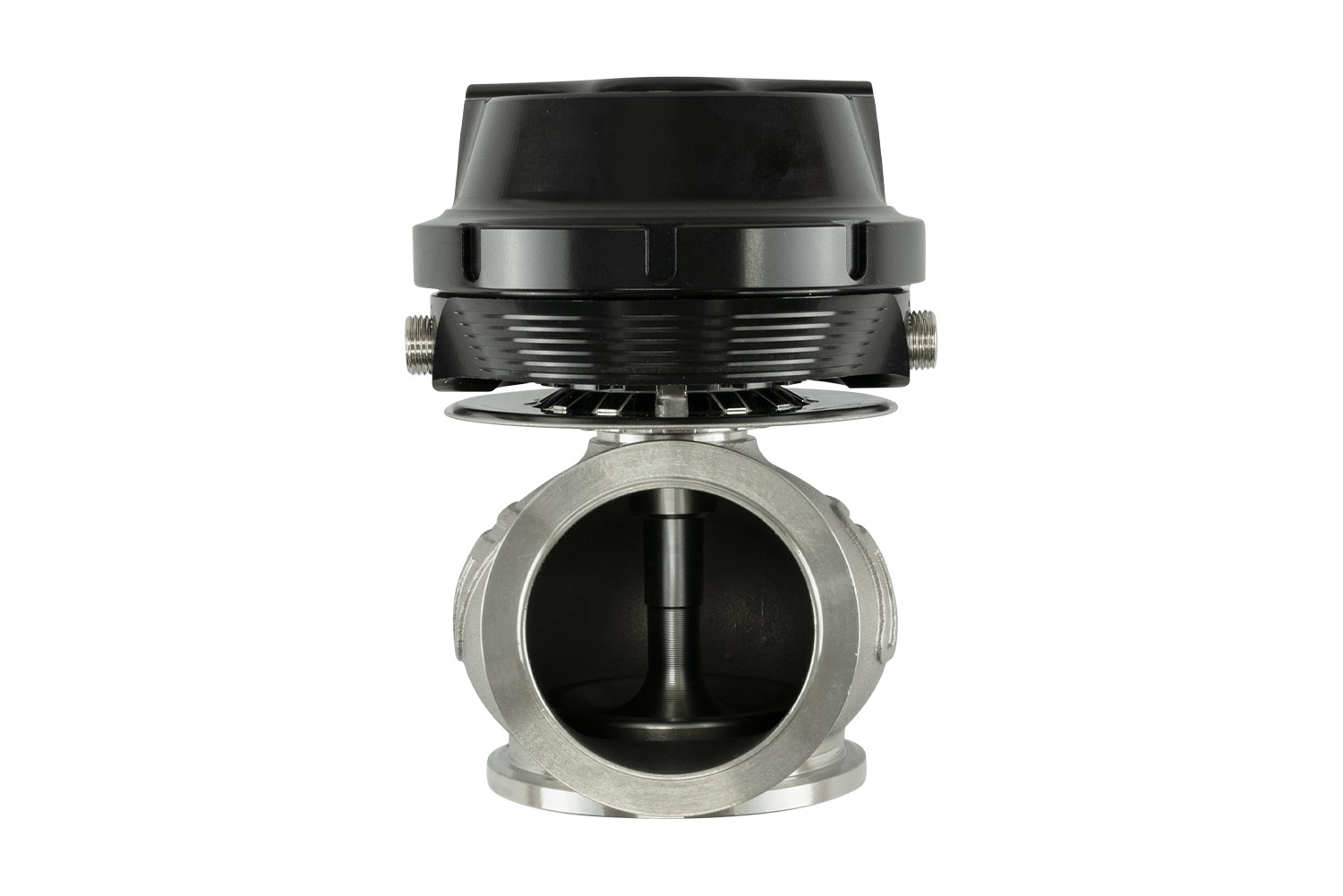

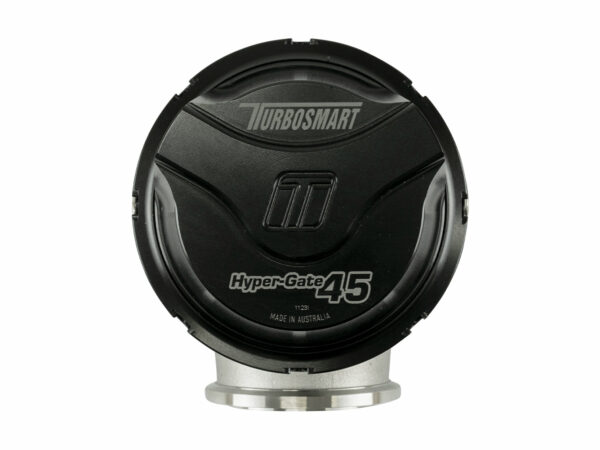

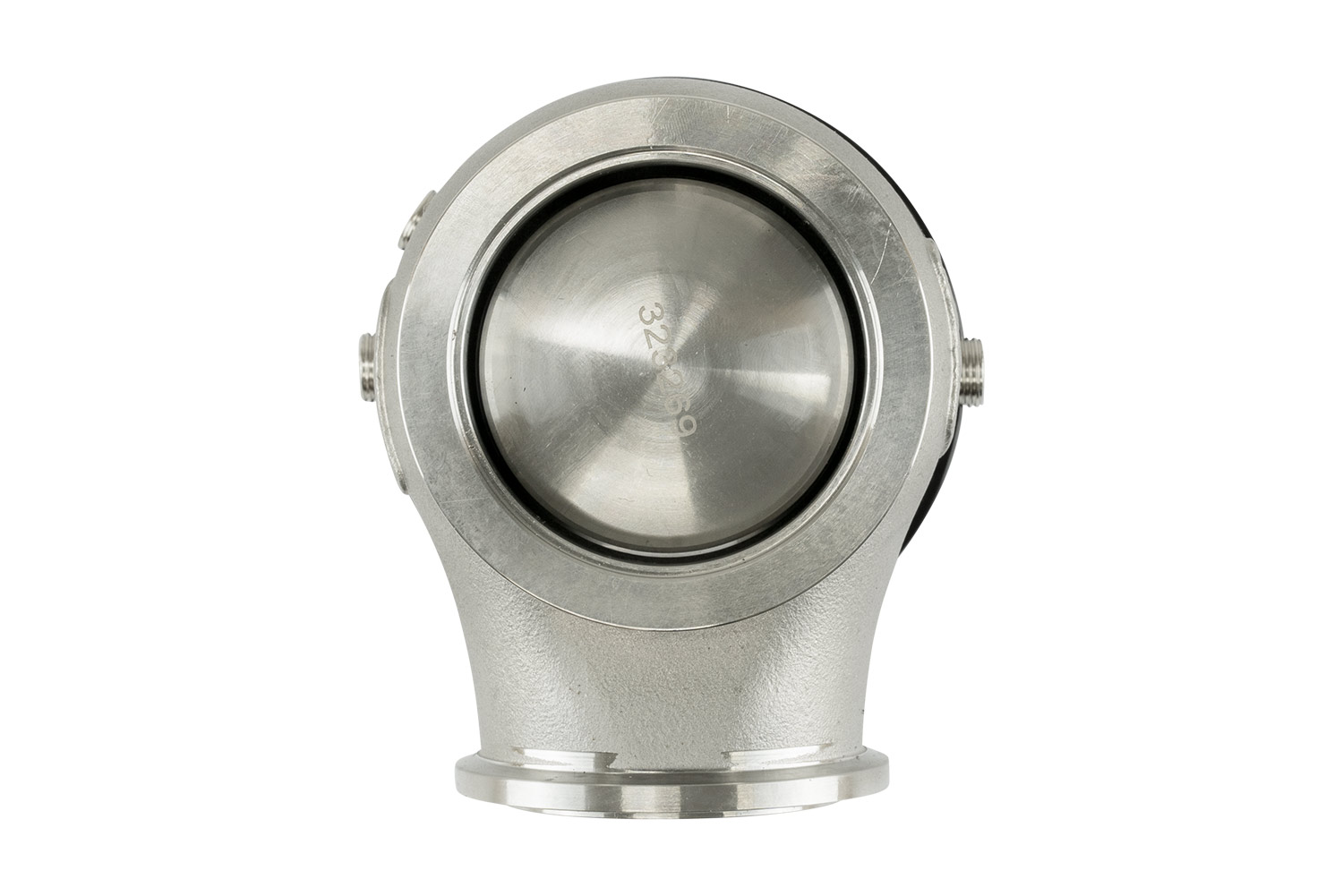

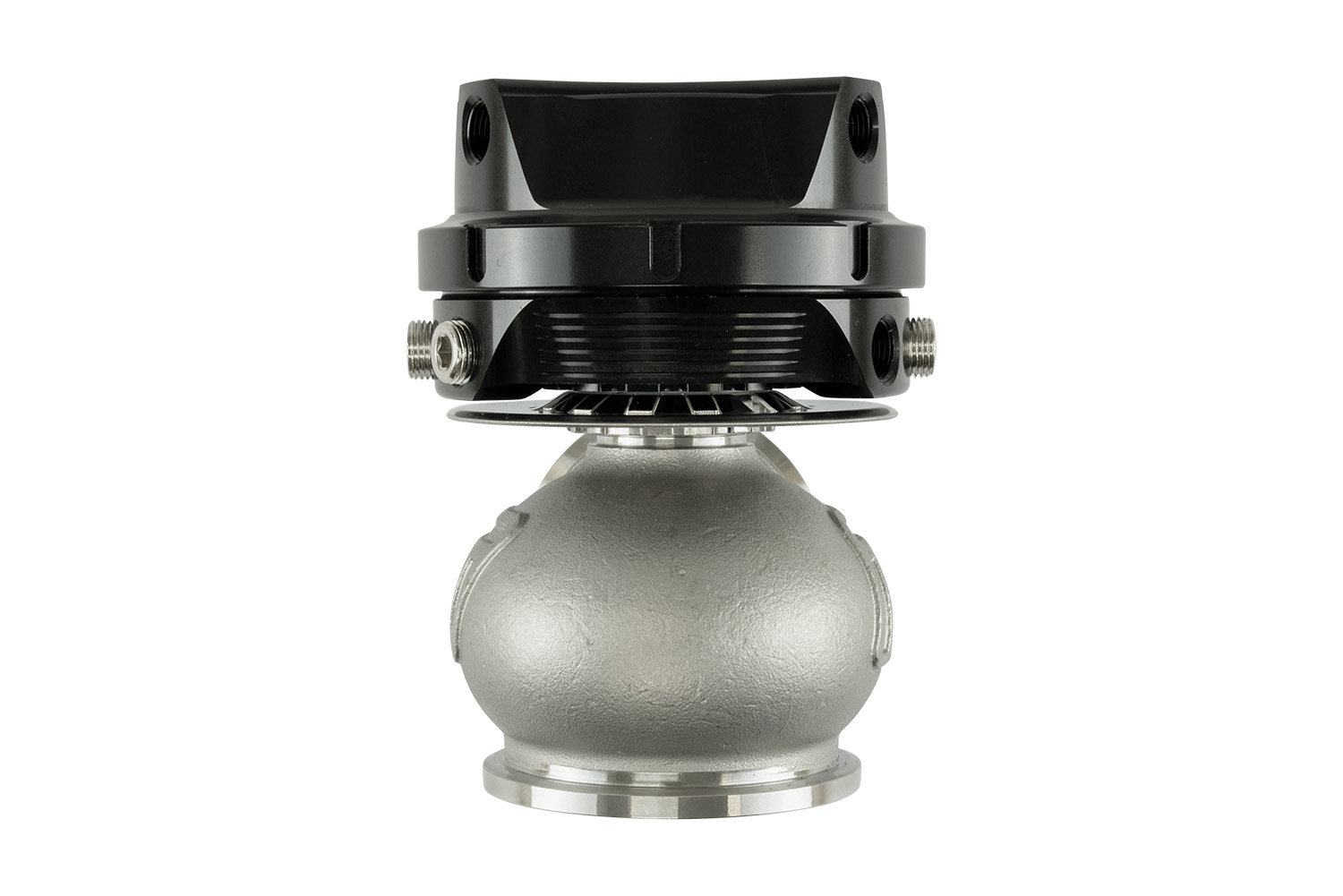

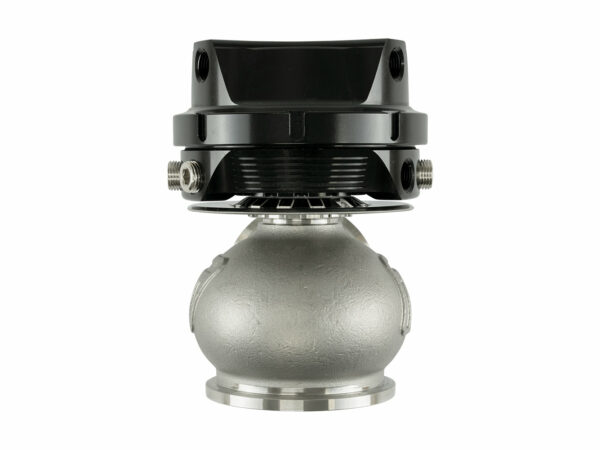

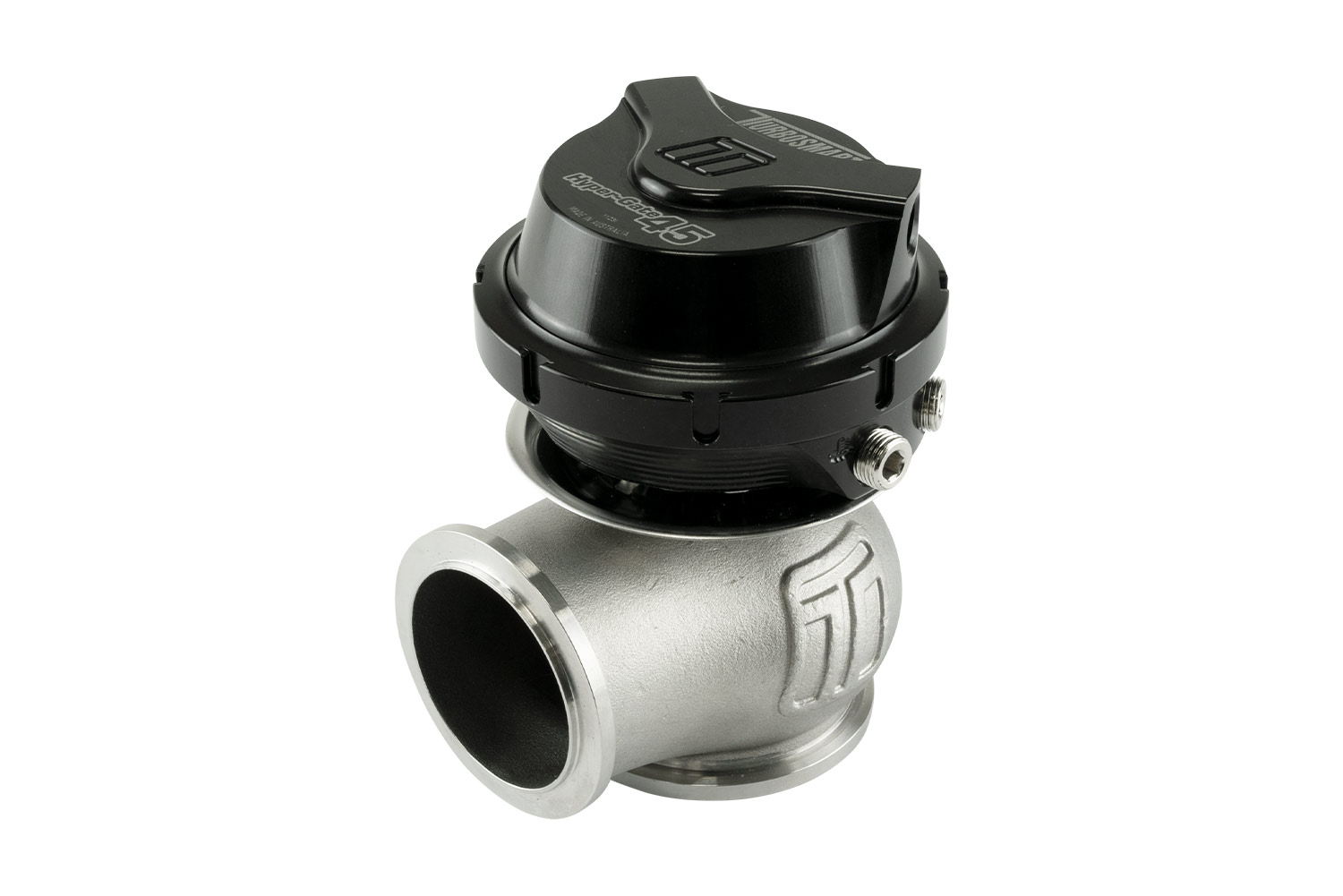

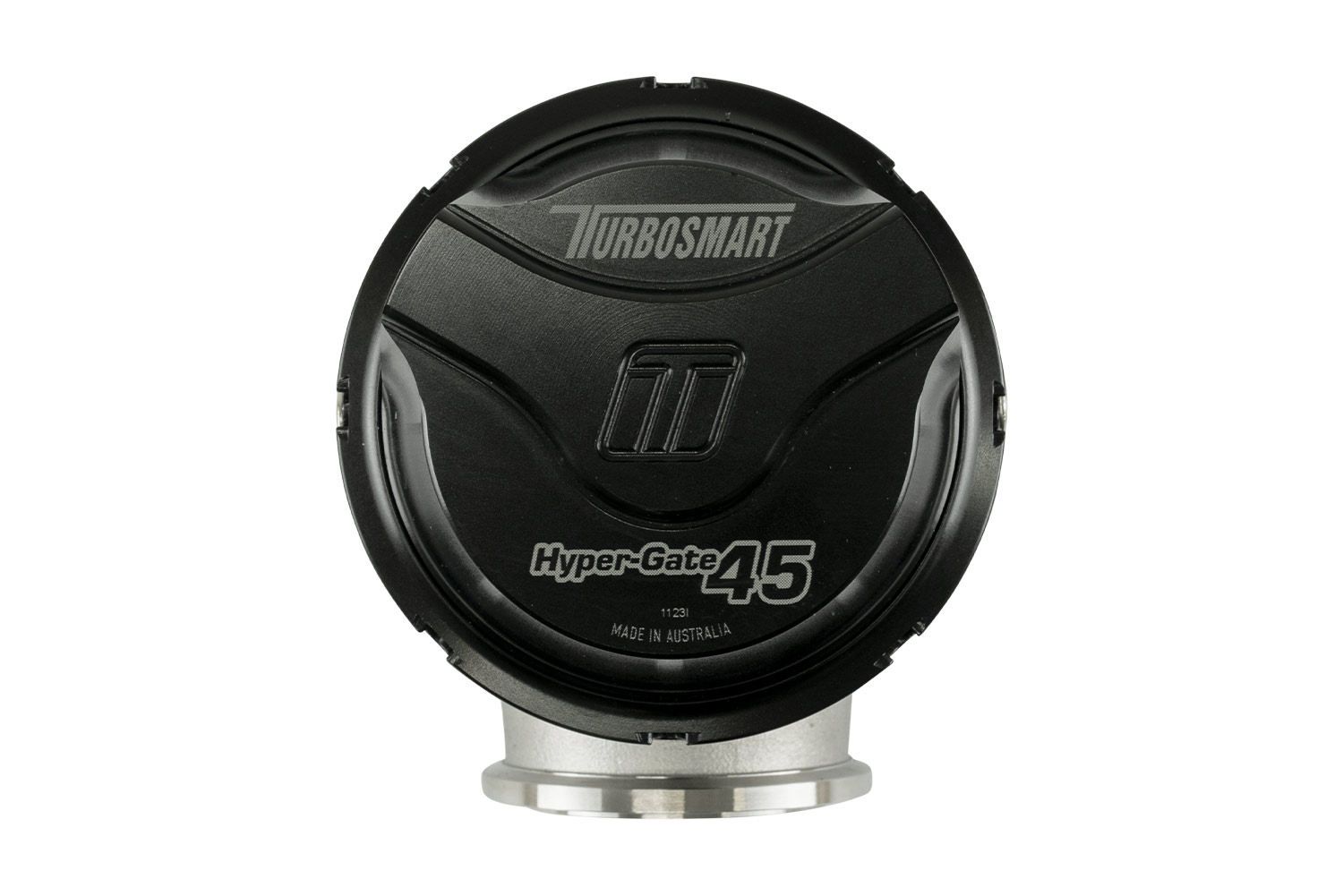

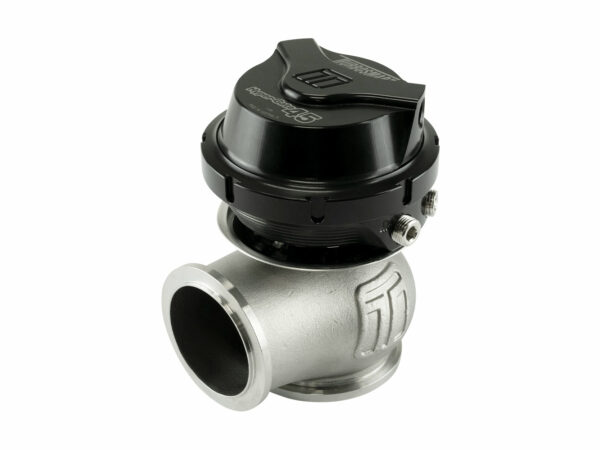

GenV HyperGate45 14psi External Wastegate (Sleeper)
$477.72USD (Excl. Sales Tax)
The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Black, Blue, Red, Purple and Sleeper colours
Wastegate Position Sensor Optional Upgrade
Compressed Gas / Co2 Version
Motorsport / Extreme Temp Version
Electronically Actuated / eWG Version
High Pressure (Up to 50psi Base) Version
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Avaialble Seperately
Rotatable / Clock-able Actuator Housing
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

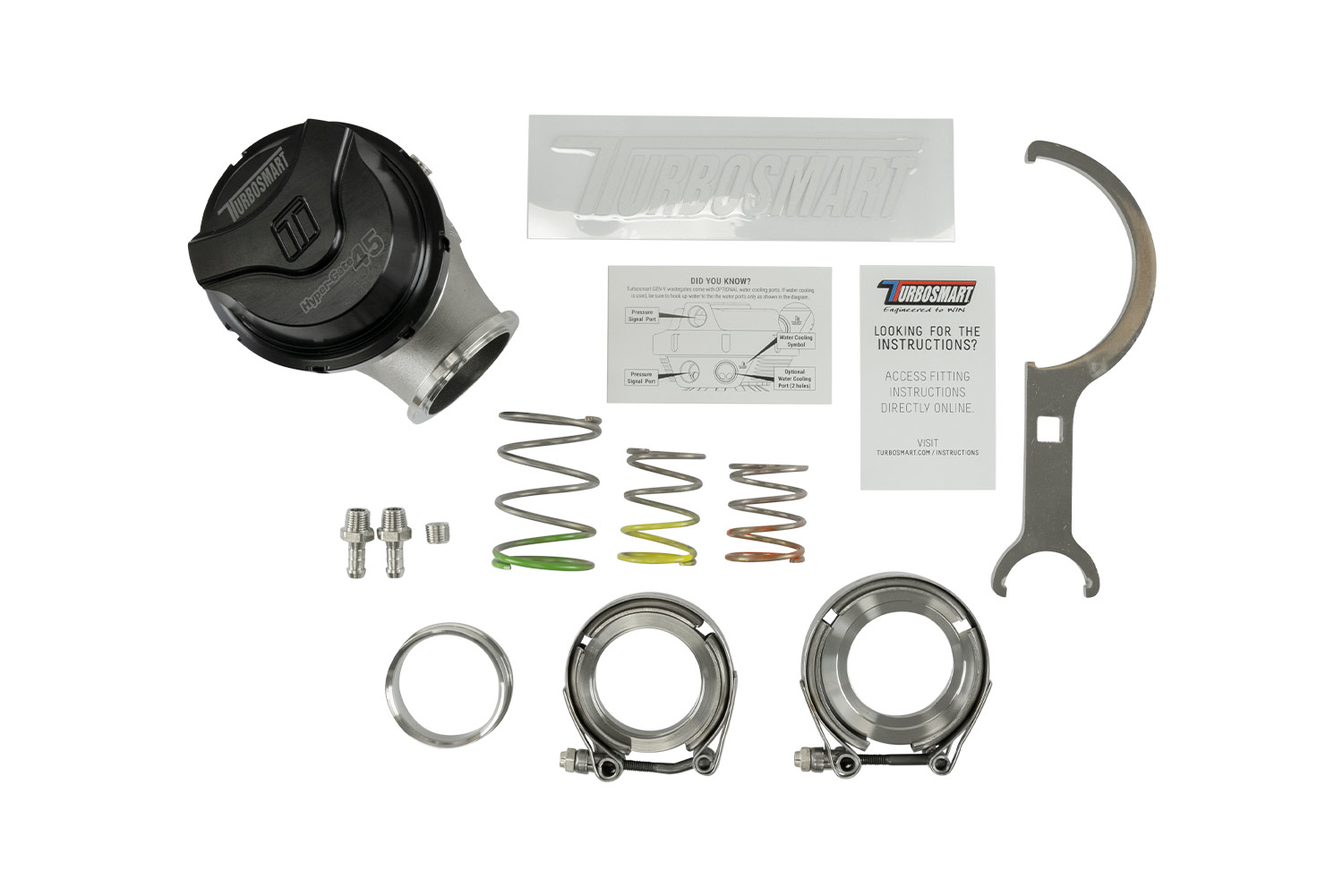

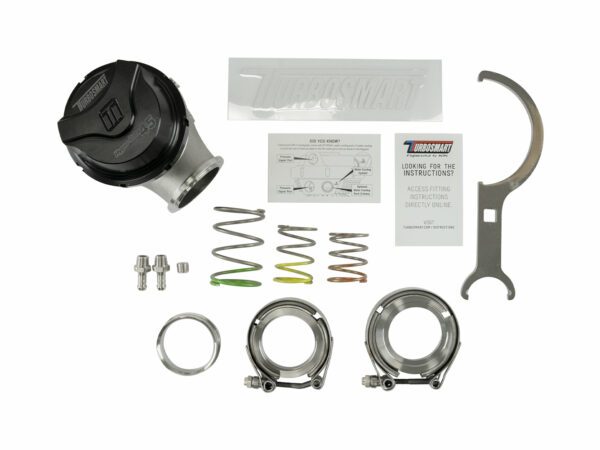

GenV Wastegate unit
All Springs Included
188.8.131.52psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
GenV HyperGate45 Diaphragm Replacement
GenV HyperGate45 Locking Collar
GenV HyperGate45 Locking Collar Tool
GenV HyperGate45 Slave Collar / Heatshield
GenV HyperGate45 Valve Seat
GenV HyperGate45 Valve Guide & Set
GenV HyperGate45 Weld Flange: Inlet
GenV HyperGate45 Weld Flange: Outlet
GenV HyperGate45 V-Band: Inlet
GenV HyperGate45 V-Band: Outlet
GenV HyperGate45 V-Band Nuts
GenV HyperGate45 Spring 3PSI Inner - Orange
GenV HyperGate45 Spring 5PSI Inner - Yellow
GenV HyperGate45 Spring 7PSI Middle - Green
GenV HyperGate45 Spring 14PSI Outer - Blue
GenV HyperGate45 Sensor Cap Black
GenV Diaphragm Replacement Tool
GenV HyperGate45 Weld Flange: Inlet (Alluminium)
GenV HyperGate45 Weld Flange: Outlet (Alluminium)
1/8NPT to 6mm Hose End Adaptor
1/8NPT to -3AN Male to Male Adaptor
1/8NPT to -4AN Male to Male Adaptor
1/8NPT 90º Poshloc Fitting - Hi-Temp (1/4")
1/8NPT T-Piece Pushloc Fitting - Hi-Temp (1/4")
1/8NPT Straight Pushloc Fitting - Hi-Temp (1/4")
Hi-Temp Pushloc Tubing 1/4" Black (3 Metres)
GenV Wastegate Press / Spring Change Tool
Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. Make sure it is set at a sensible & reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.
Can I use this on any turbocharged engine?
External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. External wastegates in most instances are a custom fitted item and require modifications to the factory exhaust manifold, or a custom / specifically manufactured manifold to suit an external wastegate.
What is a GenV Wastegate?
A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.
Do I have to use the liquid cooling ports?
No. The GenV External Wastegate boasts a number of design features which means it can tolerate higher temperatures for longer than it’s peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.
Why Does the Actuator housing Rotate?
So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be setup for the reference lines.
How do I change the springs?
You will need the locking collar tool supplied in the box and you will also need to apply physical force down on the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force is likely to damage the collar and potentially the actuator.
What size are the reference ports?
1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit which will get you going, however you’re welcome to use adaptors for AN or push lock fittings for more advanced installs.
This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?
The pressure rating in the description of a GenV external wastegate is the base mechanical pressure and we including all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note however this is just the lowest the gate can be setup for and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
