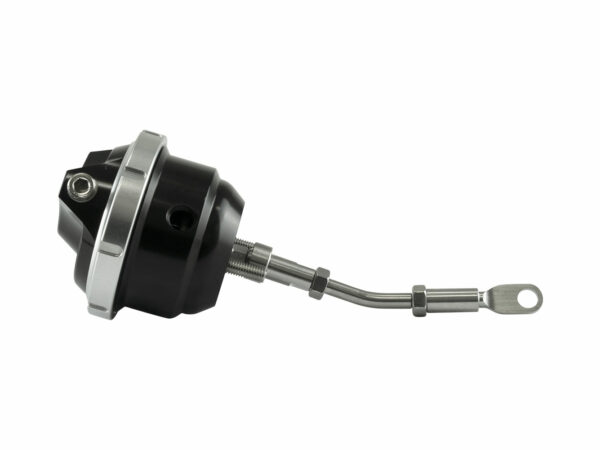

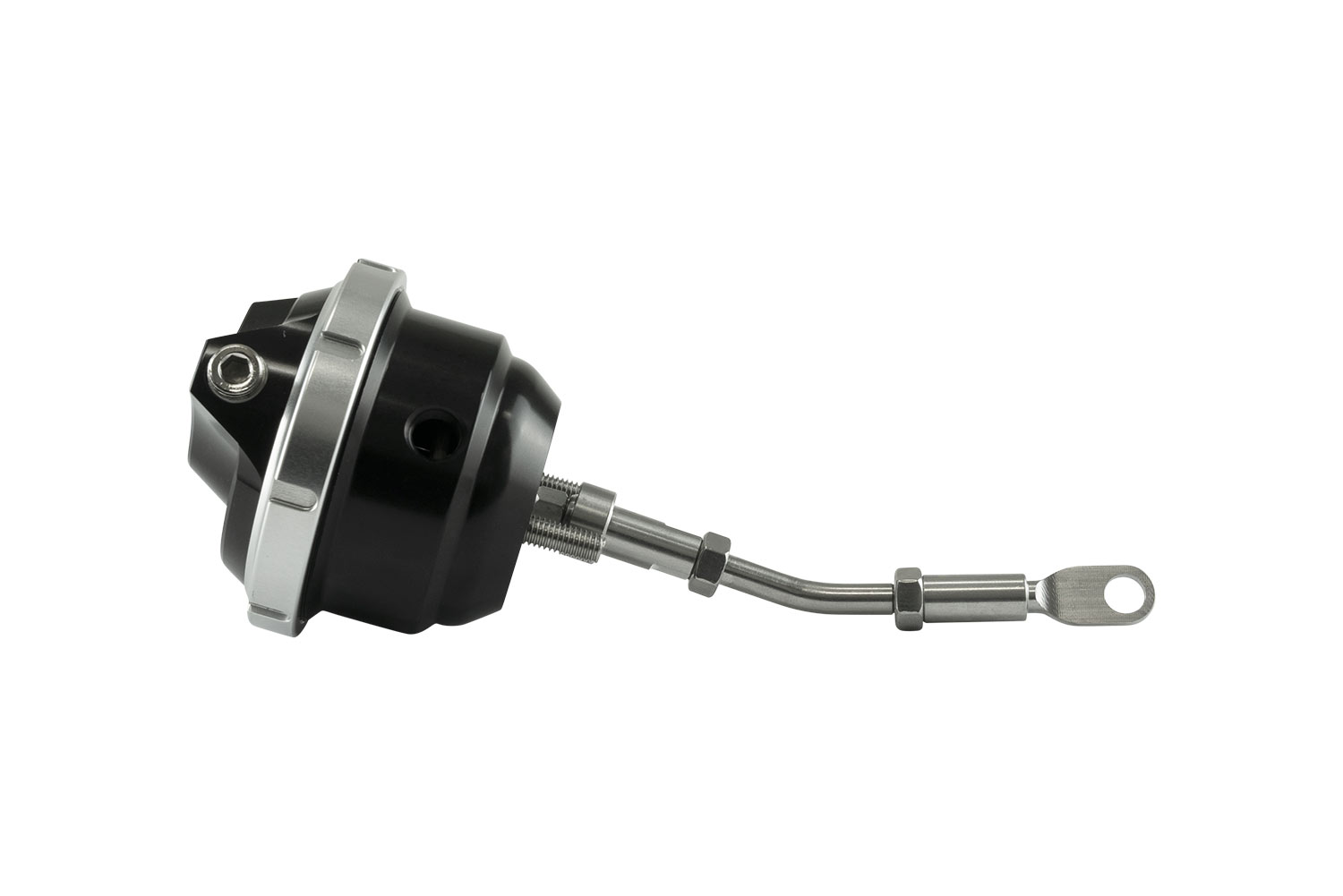

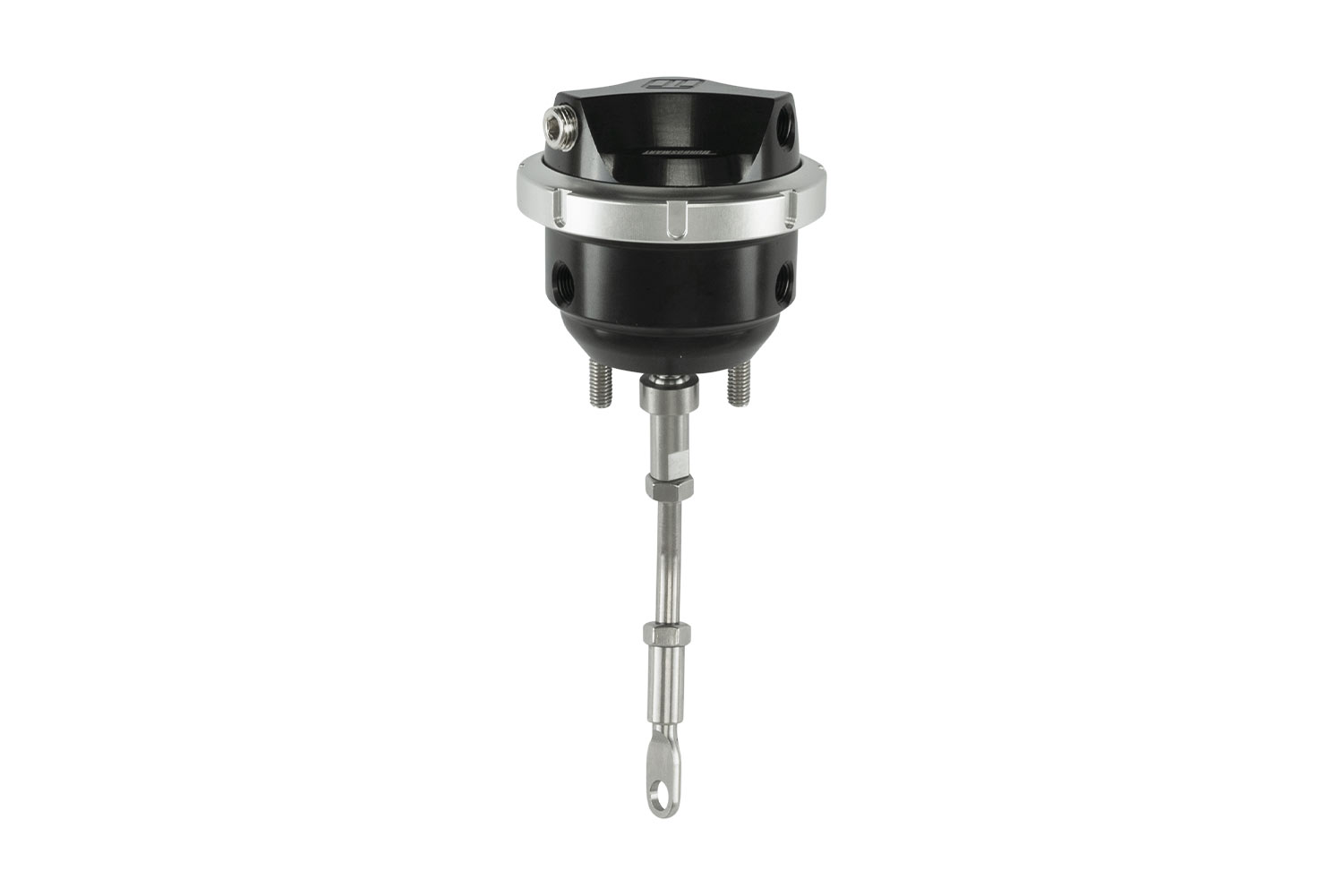

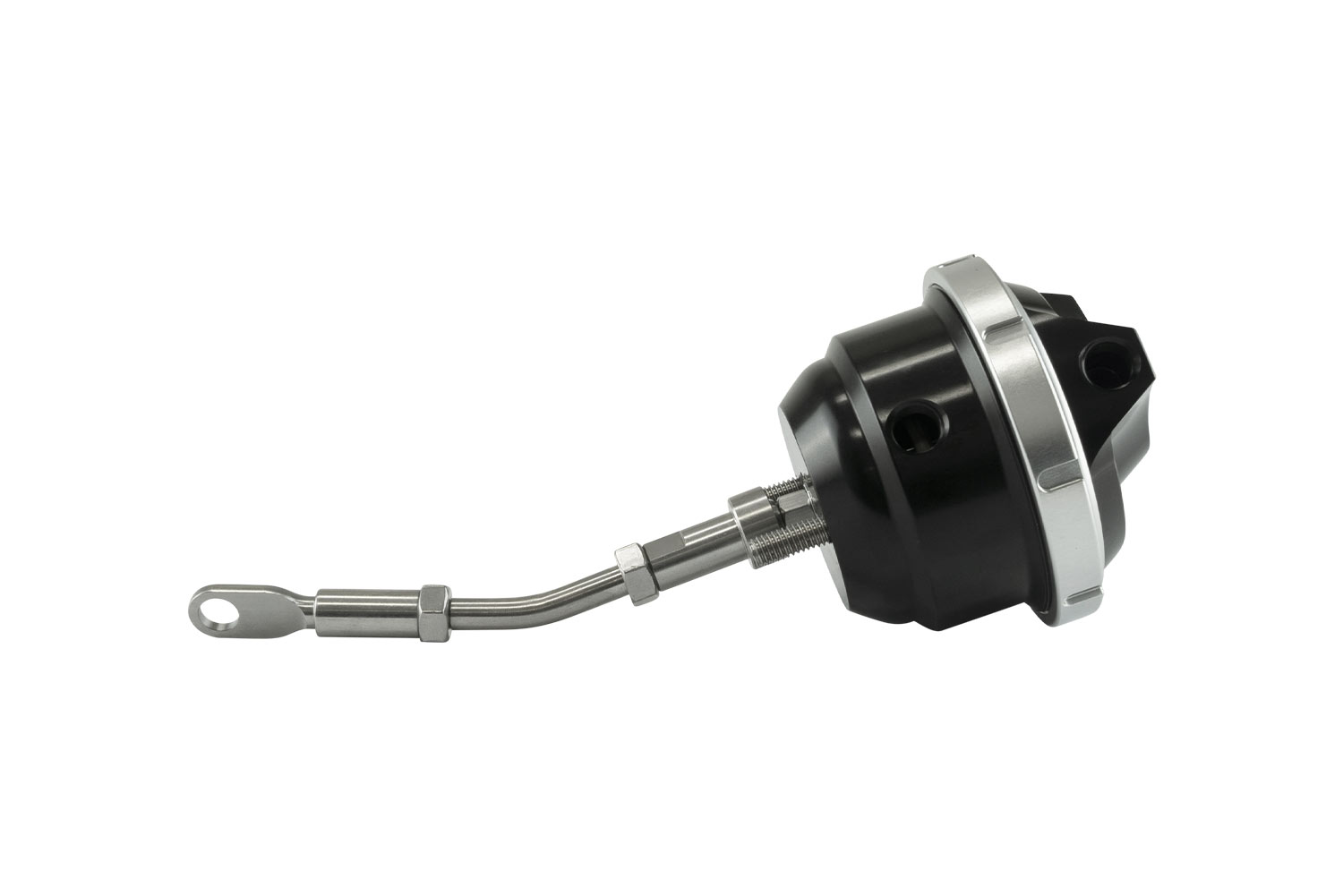

GenV IWG (Twin Port) Wastegate Actuator Suit Garrett G25 14 Psi
$259.94USD (Excl. Sales Tax)

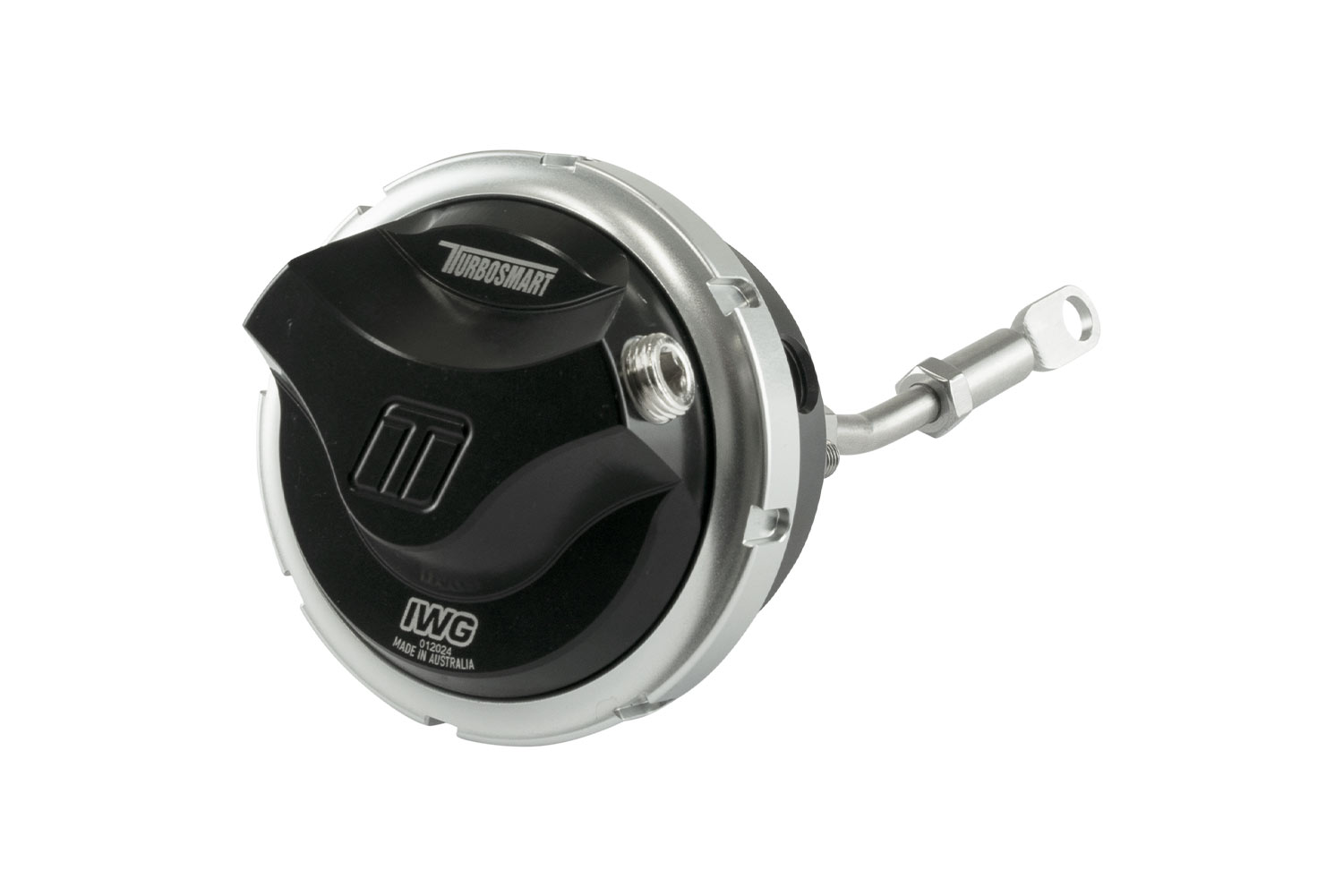

Turbosmart GenV Twin Port Internal Wastegate Actuator to suit Garrett G25 Series Turbochargers. This IWG actuator has it all, taking technology from the Award winning GenV range of External Wastegates providing unparalleled actuator performance.
Turbosmart GenV IWG (Internal Wastegate Actuator) Range provides improvements in boost control over your factory actuator. The large working surface area of our unique diaphragm system ensures increased boost response and control, at any performance or boost level.
Using Turbosmart’s locking collar system, you can also quickly change your base spring selection from 5, all the way up to 26psi. The Nitronic guide & Hard Chromed Intermediate Rod, mated with the swivel joint system ensure the best possible lower chamber seal for true twin port control strategies, unequalled actuation range and control.
GenV Twin Port (Standard Cap): TS-0620-4012
GenV Twin Port (Position Sensor Cap): TS-0620-4014

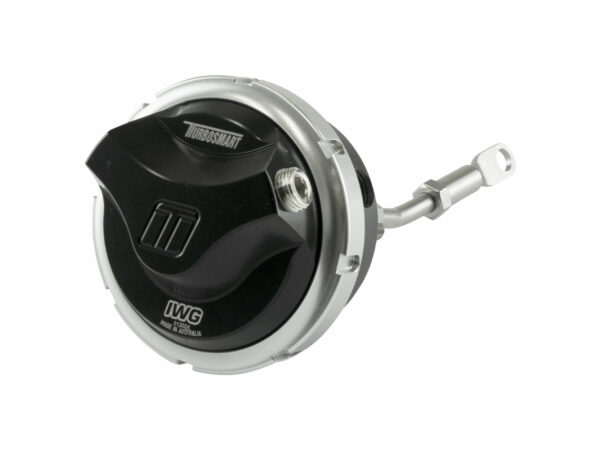

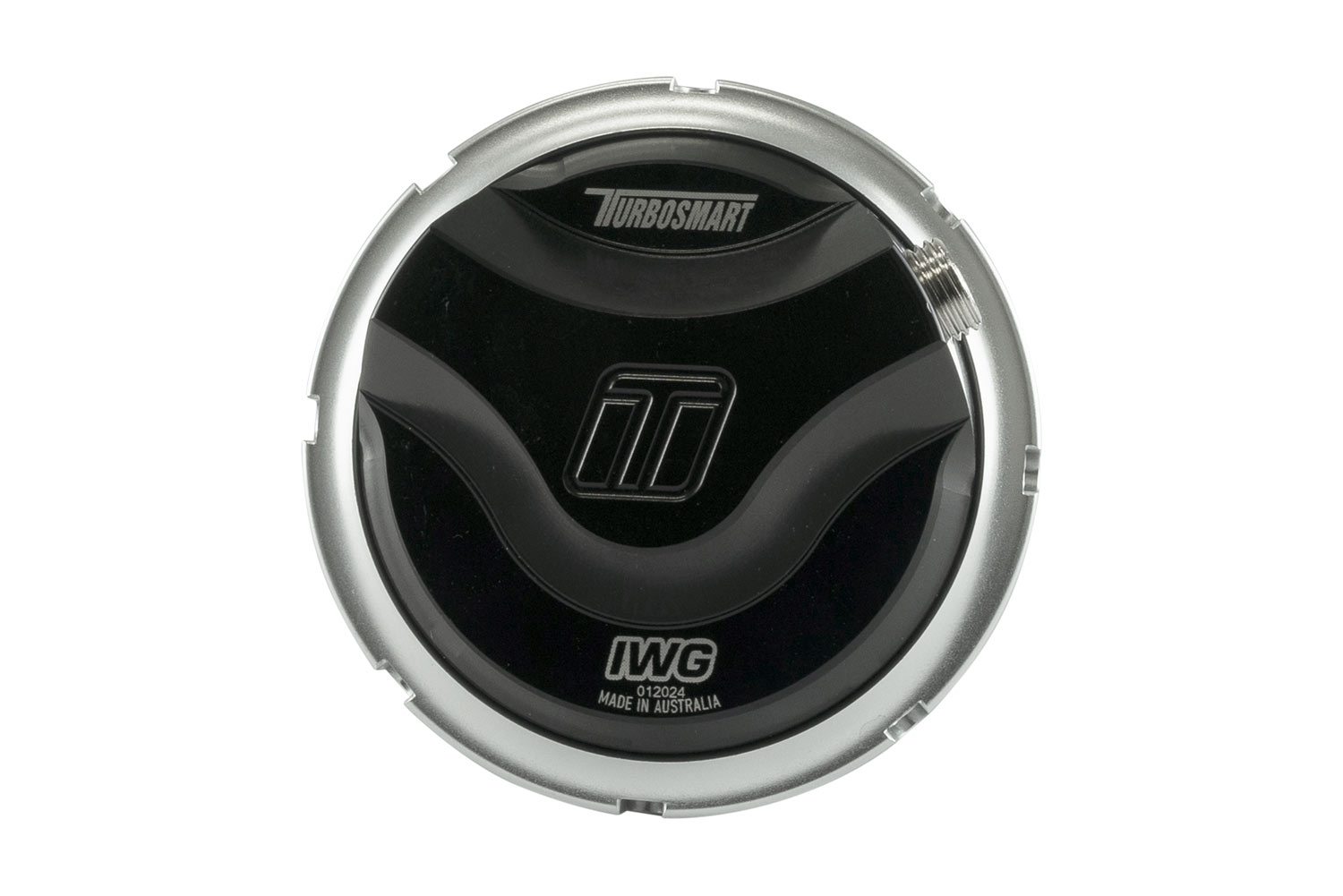

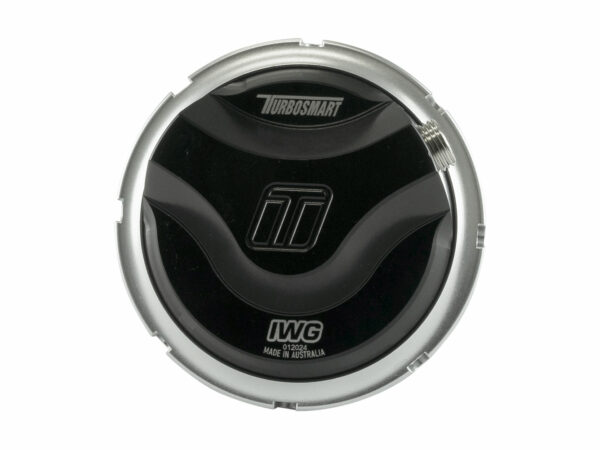

GenV cap including 1/8NPT reference ports
True Twin Port Control for a wide boost control window
Hard chromed Intermediate rod & nitride guide for cycle tested & proven reliability
Proprietary Swivel Joint for complete linear actuation
Turbo specific rod to ensure perfect fitment on all G25 series turbos.
This is a bolt-on fitment for the Garrett G25 Series turbochargers. Accessories are supplied to adapt to all internally actuated variants, including all spring options.
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

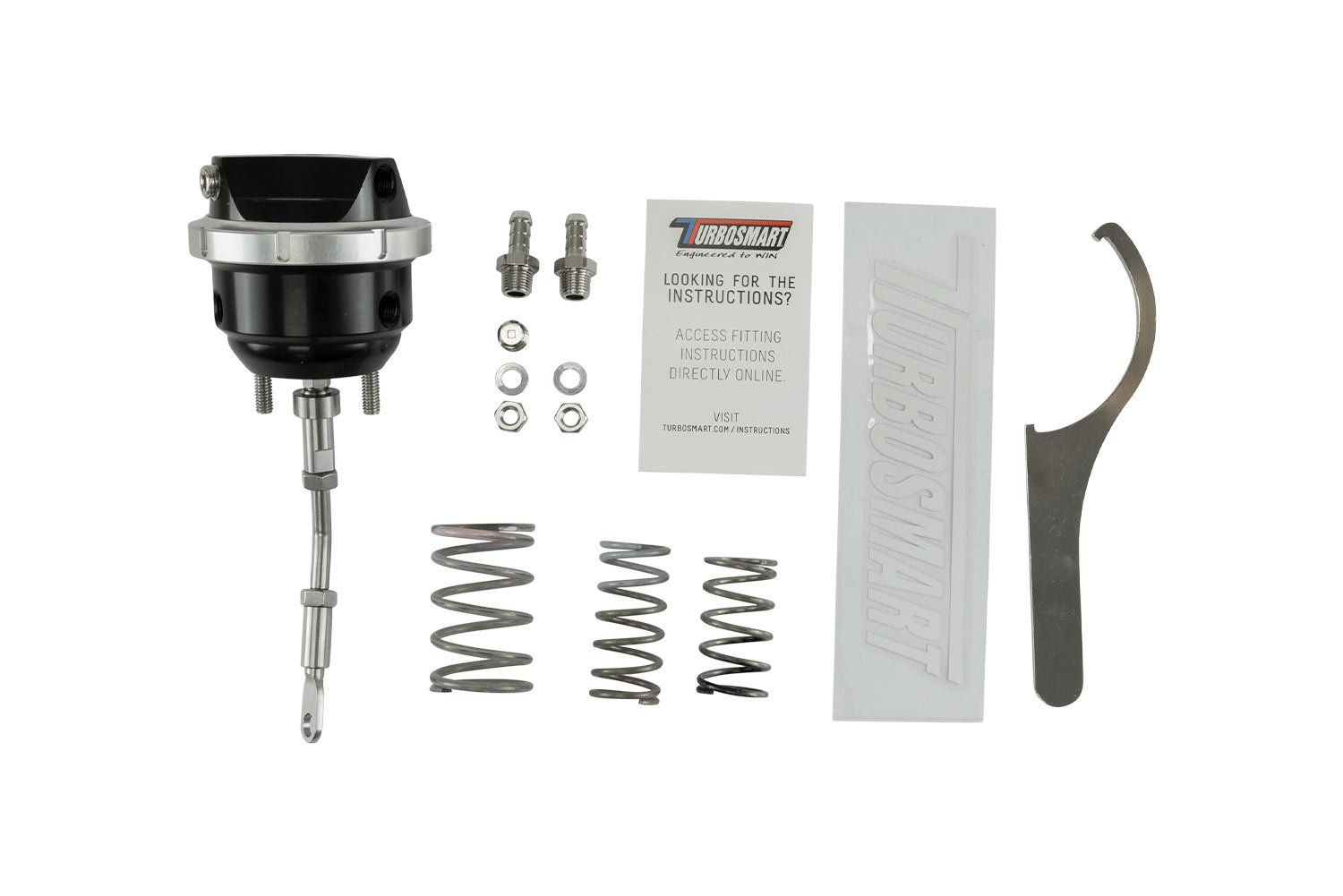

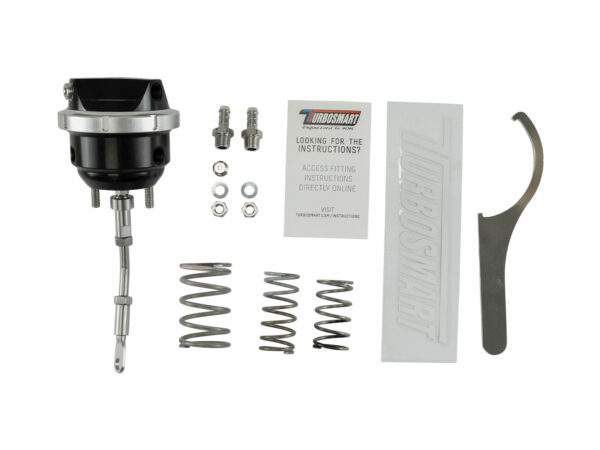

Turbosmart GenV Internal Wastegate Actuator
4 x Springs: 3psi inner, 5psi inner, 7psi middle, 14psi outer (pre-installed)
2 x 1/8 NPT nipples
1/8 NPT blanking plugs (1x pre-installed)
C Spanner / IWG Actuator Collar Tool
Everything you will need to get up and going with a Garrett G25 Series Turbocharger.
Is this a universal product?
No, this part number is specifically put together to suit the Garrett G25 series Turbochargers.
What do I need a sensor cap for?
Not everyone will – But for those interested, or pushing the absolute limits… We’ve found having wastage positions sensor is an important value to data log. We’ve even worked with some engine calibrators on using that sensor for closed loop, highly technical boost control strategies. More data is always better.
What spring options does the Gen-V IWG have?
You effectively have 8 options; 3psi, 5psi, 7psi, 12psi, 19psi, 14psi, 21psi & 26psi with the use and combination of just 3 springs. And remember, this is just base mechanical spring pressure. Much higher levels of boost can be achieved with some type of boost control or reference manipulation.
What is Twin Port & Why would I need it?
Twin Port boost control provides for pressure manipulation on both sides of the diaphragm of the actuator. In the simplest of terms, this means you can have a much broader range of boost control options & often able to fit a much softer spring while still able to run very high levels of boost. This is because you can force pressure into the top cap, keeping the gate shut for longer.
Wastegate not actuating – Confirm signal hose is plumbed to a pressure only source, confirm preload during installation.
Poor wastegate actuation – Ensure signal hose is not shared and is sourced as close to the compressor as possible, check seal on fittings.
Poor wastegate actuation – Confirm no obstructions in actuator rod path.
Boost creeping at high rpm – Wastegate flow path is poor, wastegate is too small for the application, ensure balljoint is not seized.
Failing the above, submit a technical request to Turbosmart with information of your engine configuration and photos of installation
