GenV Wastegate Unit
10 & 25PSI springs included in Box
GenV SS316 Valve Seat
Mounting Bolts and Nuts
Locking Collar Tool
Hose Tail & Blank Kit
DOES NOT INCLUDE WELD FLANGES
$499.94USD (Excl. Sales Tax)

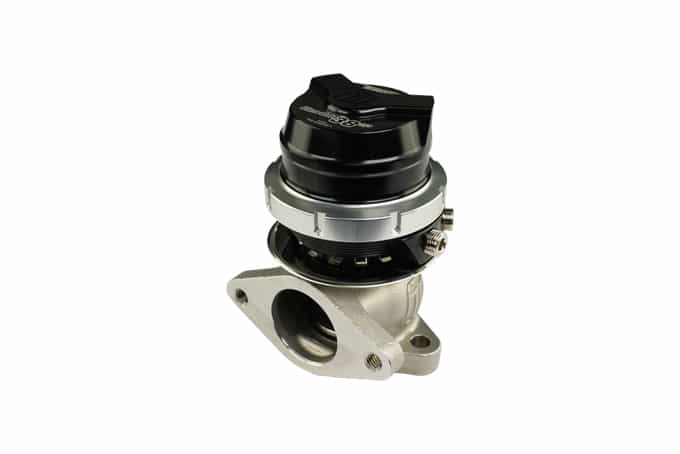

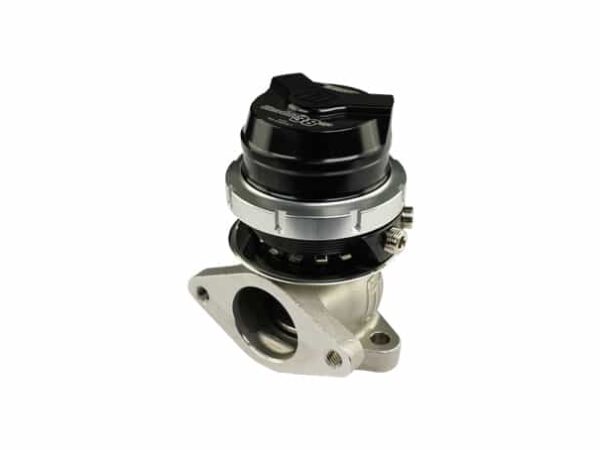

The GenV UltraGate38 HP external wastegate is a Motorsport proven, cost effective 38mm 2 Bolt external wastegate with base spring pressure options of up to 50psi! Add to that some reference signal manipulation and you have some serious boost! The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8″ NPT reference ports.
38mm GenV UltraGate38HP – TS-0551-1312
40mm GenV CompGate40HP – TS-0552-1312
45mm GenV Hyperflow45HP – TS-0553-1312
HP Actuator – Up to 50psi Base Pressure
Class Leading Thermal Performance
Class Leading CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Actuator Liquid Cooling
Rotatable / Clockable Actuator Housing
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
