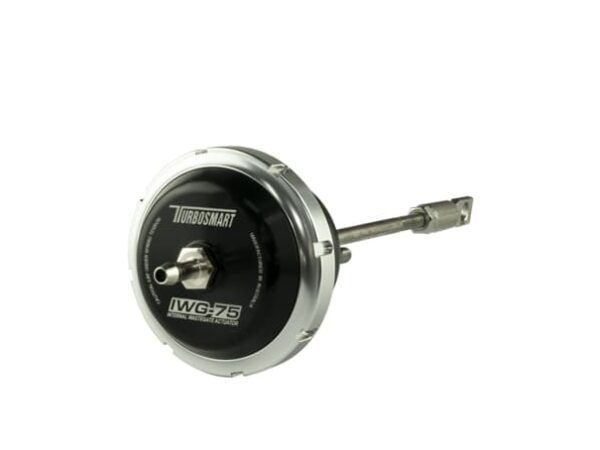

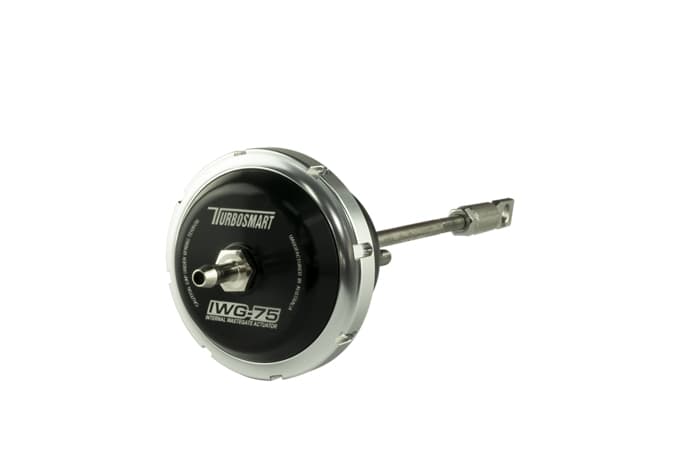

IWG75 Wastegate Actuator Suit Ford Mustang 2.3 EcoBoost – 10PSI

$174.94USD (Excl. Sales Tax)

TS-0622-8102

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures, however, tuning & recalibration is likely required.

Available In
7psi:   TS-0622-8072
10psi: TS-0622-8102
12psi: TS-0622-8122

14psi Bolt On Suit Turbonetics / Precision NX2 Turbo Upgrade: TS-0622-1003

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

Notes
7psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine’s ECU.

- +
