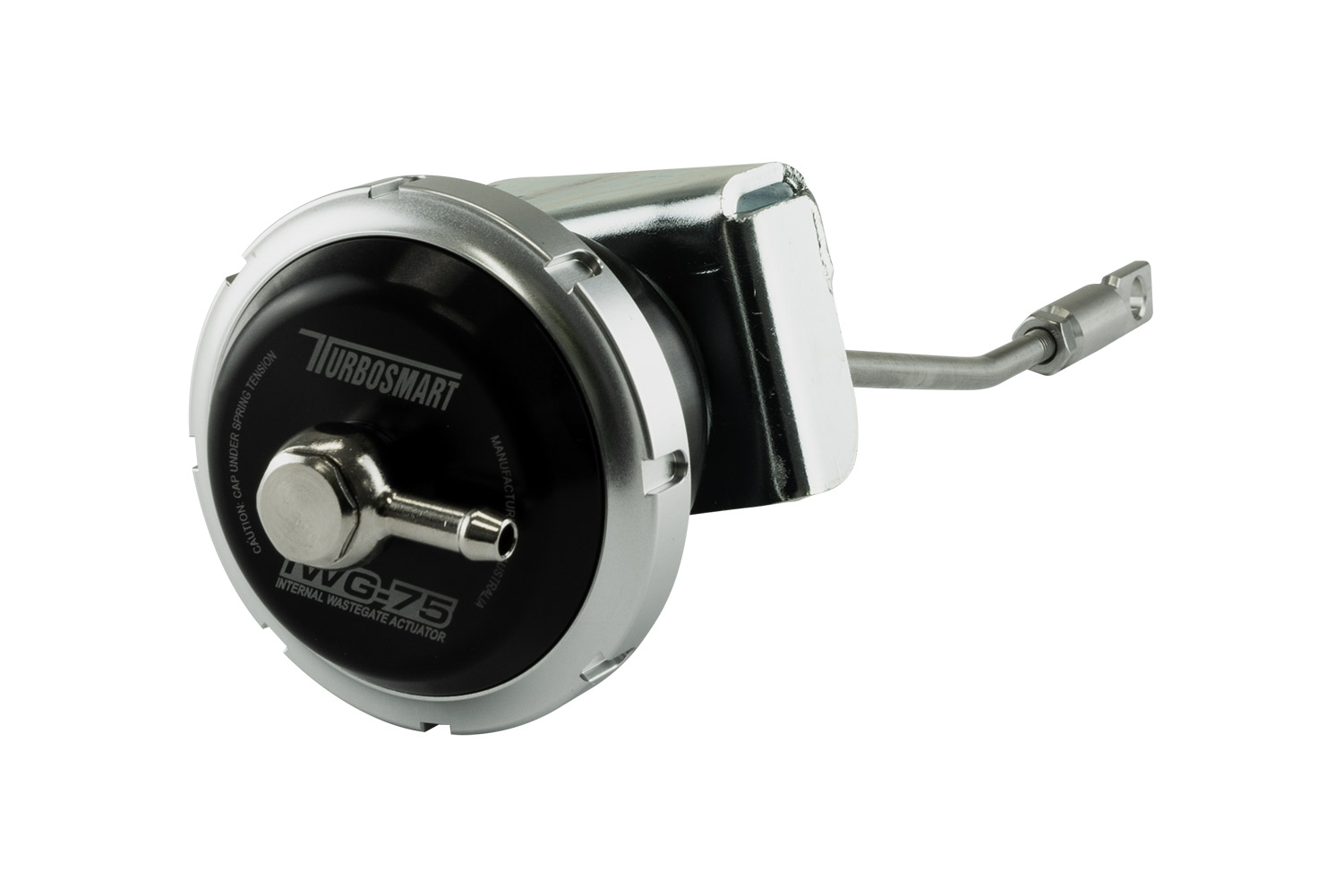

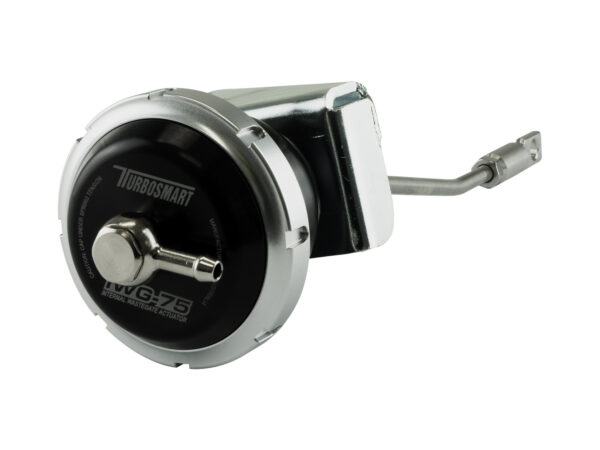

IWG75 Wastegate Actuator Suit Mitsubishi EVO 4-8 22 PSI Black
$211.06USD (Excl. Sales Tax)
Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration is likely required.
10 PSI / 0.68 BAR: TS-0601-1102
14 PSI / 1.00 BAR: TS-0601-1142
18 PSI / 1.24 BAR: TS-0601-1182
22 PSI / 1.51 BAR: TS-0601-1222
24 PSI / 1.65 BAR: TS-0601-1242
26 PSI / 1.79 BAR: TS-0601-1262
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System
14 psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine’s ECU.
This is a bolt-on fitment for the TD05H turbocharger as a fitted factory to the 46G3 Powered Mitsubishi Evolution 4-8.
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

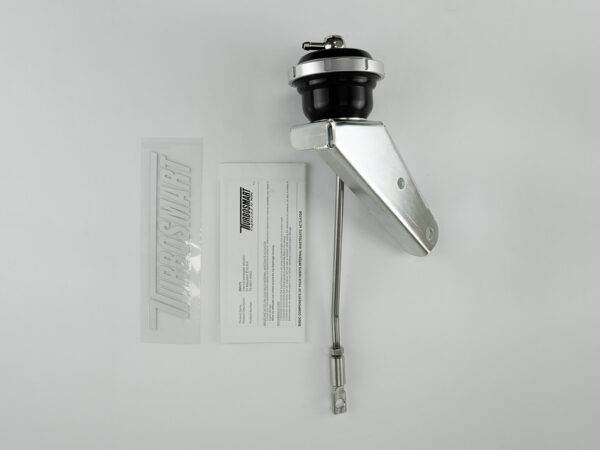

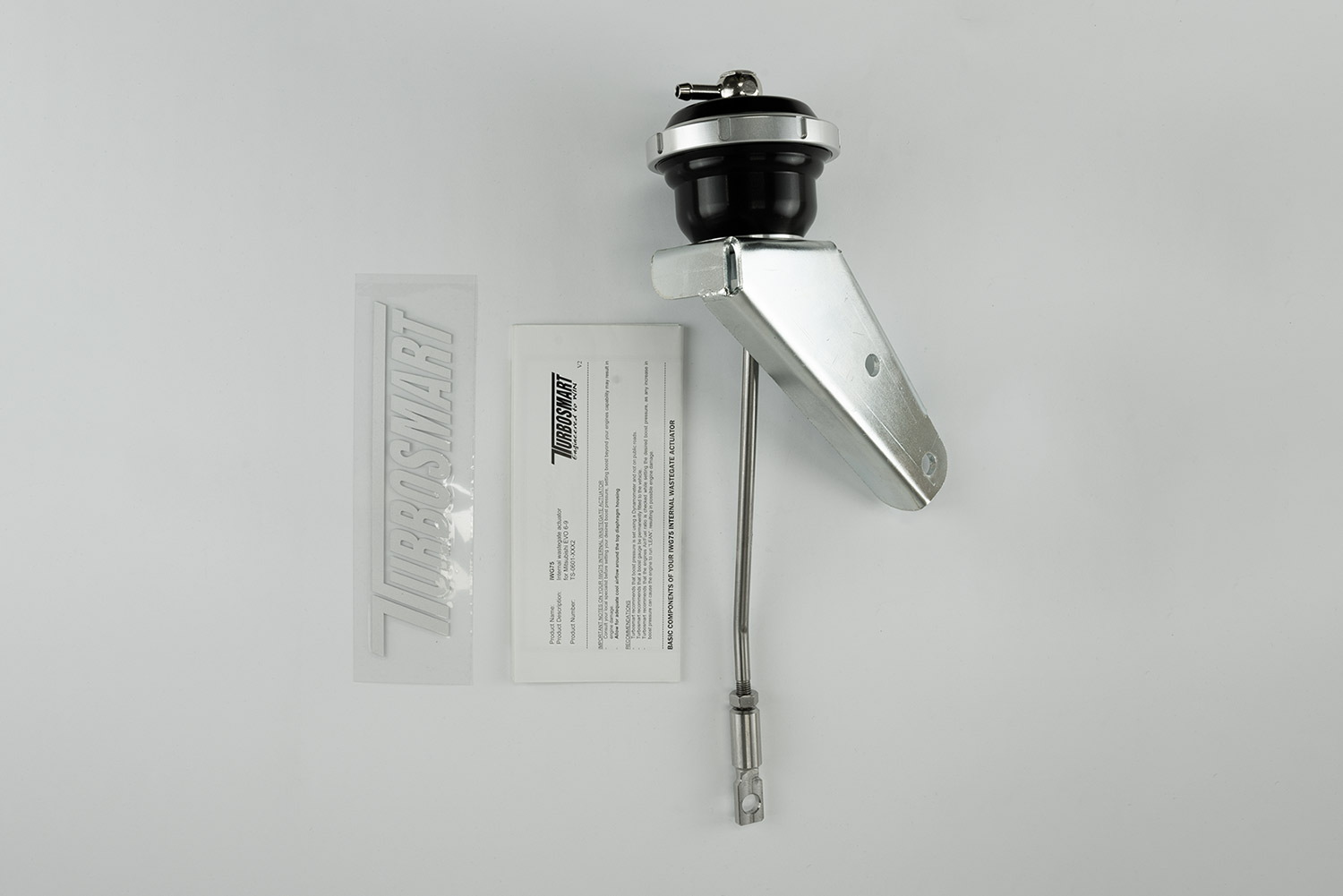

IWG75 Wastegate Actuator
Vehicle Specific Mounting Bracket
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
Water Ingress Protective Hood
Gen4 IWG75 Spring 3psi Inner – Brown / Black
Gen4 IWG75 Spring 5psi Inner – Brown/ Grey
Gen4 IWG74 Spring 7psi Middle – Brown / Purple
Gen4 IWG75 Spring 11psi Middle – Brown / Red
Gen4 IWG75 Spring 10psi Outer – Brown / Blue
Gen4 IWG75 Spring 7psi Outer – Brown/ Pink
1/16” NPT to -3AN Male to Male Adaptor
1/16” NPT to -4AN Male to Male Adaptor
1/16” NPT to 1/8” NPT Male to Female Adaptor
