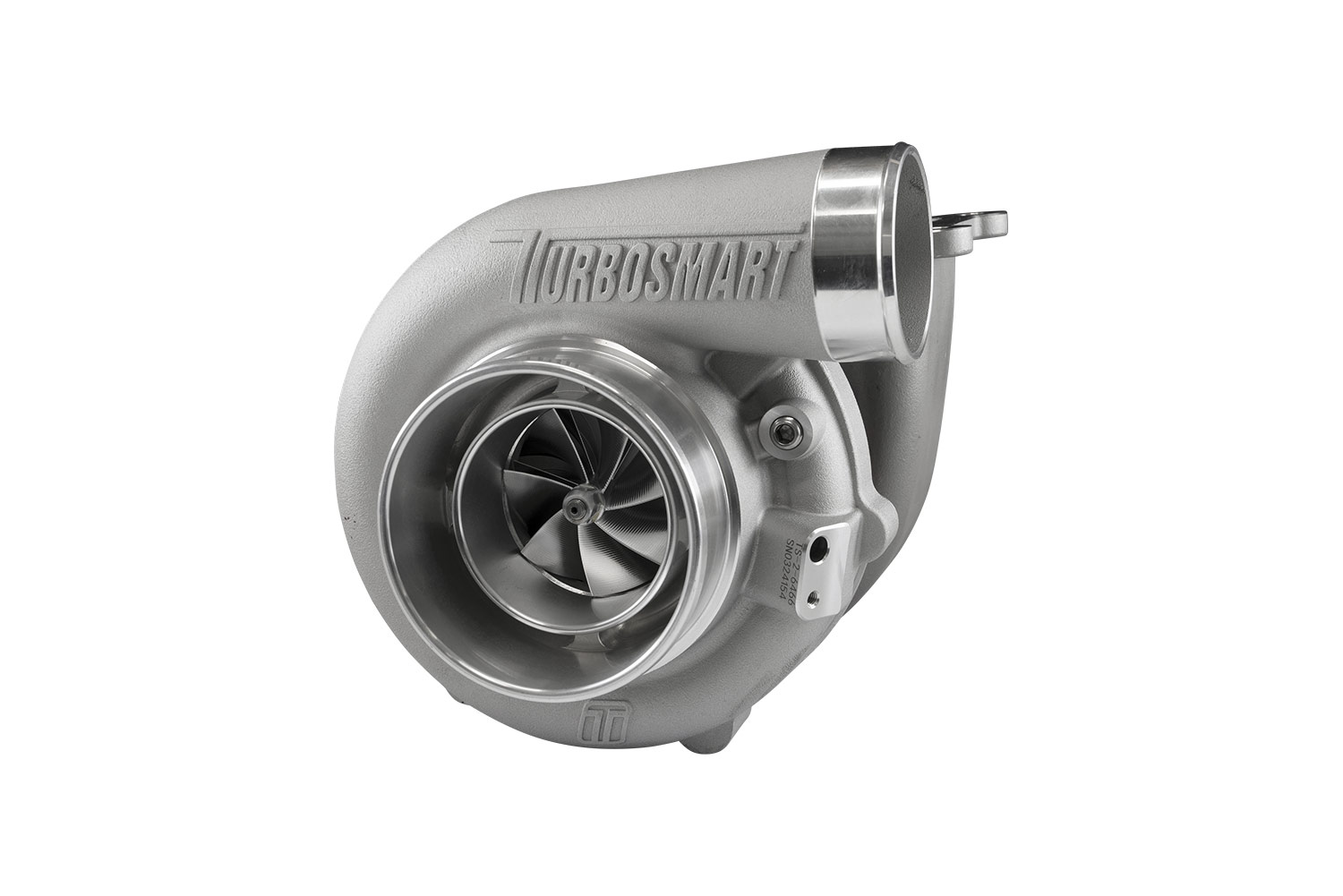

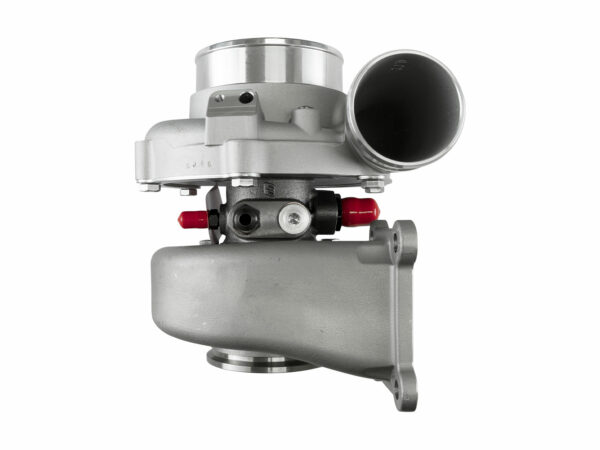

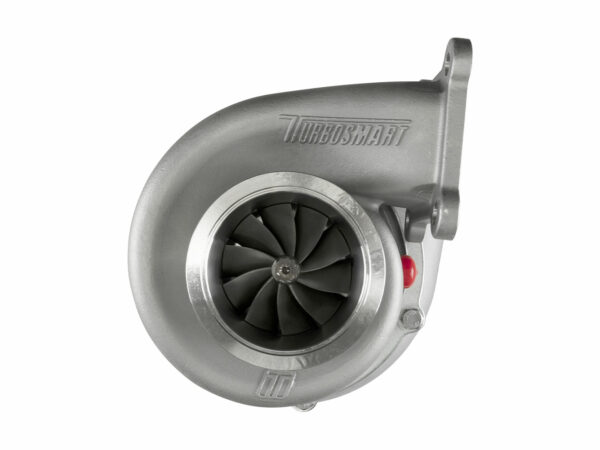

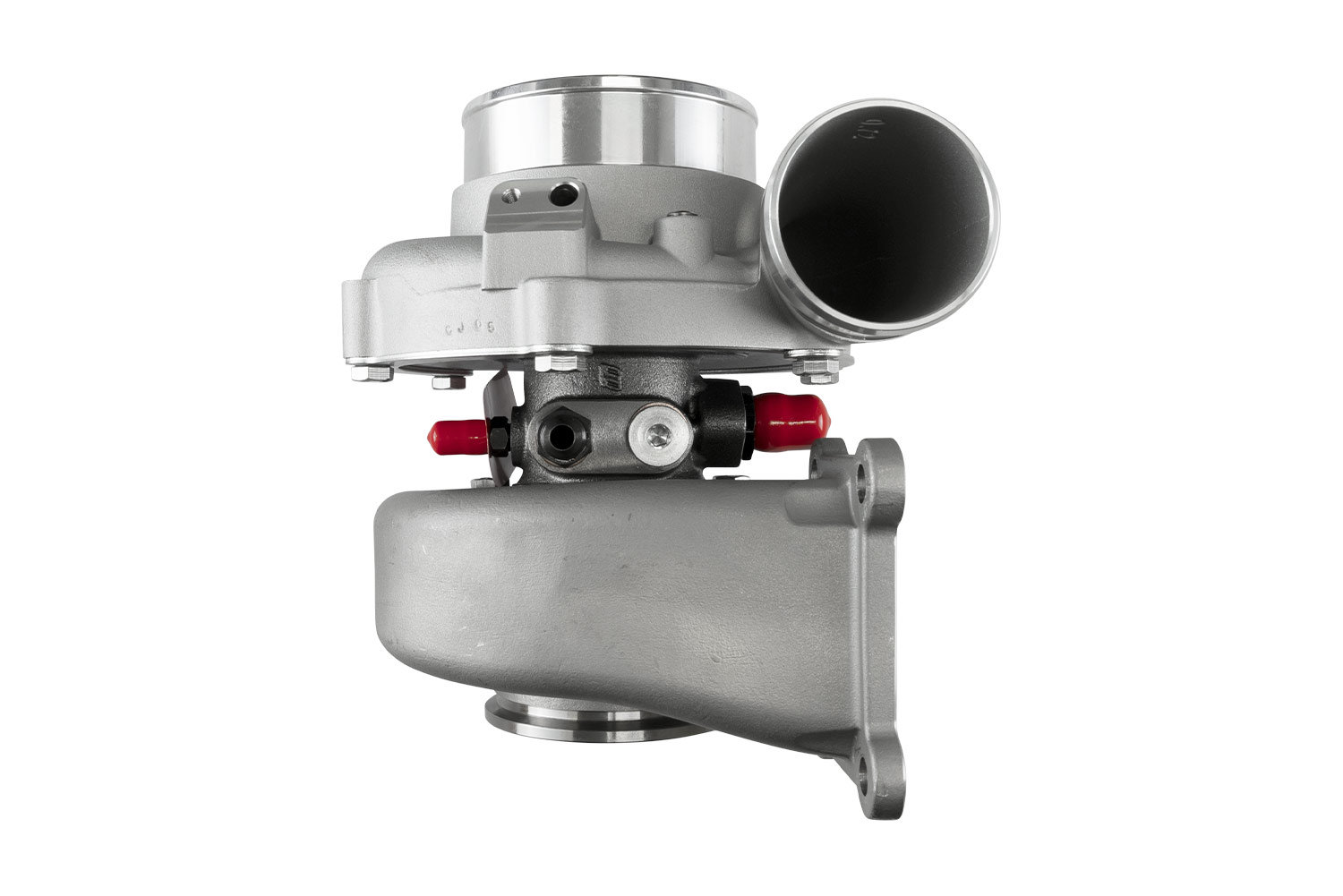

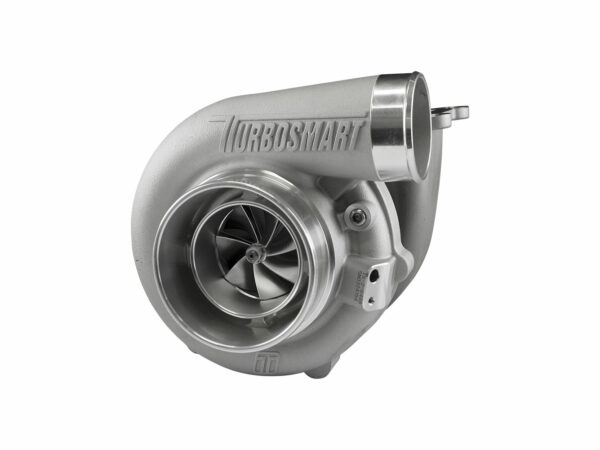

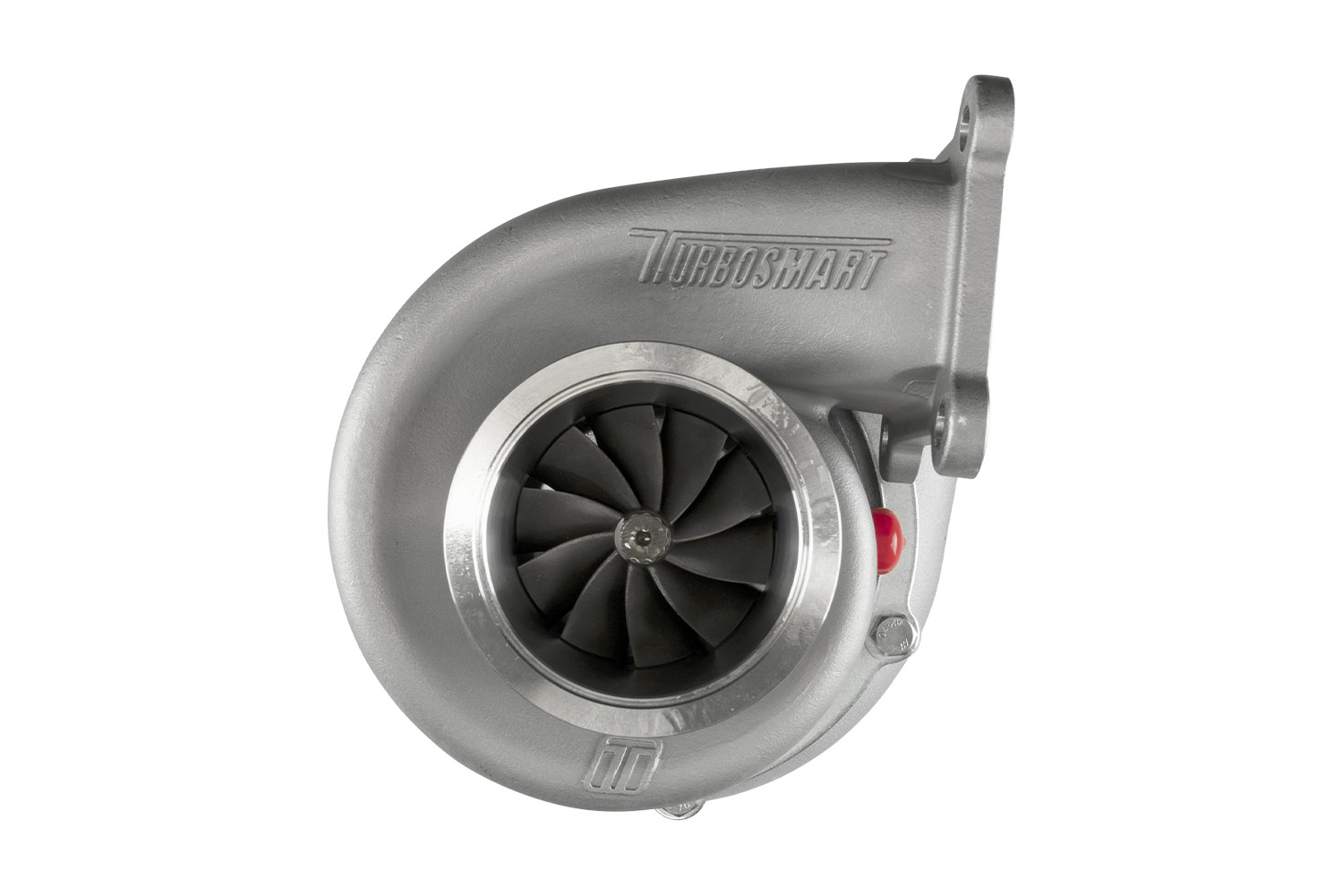

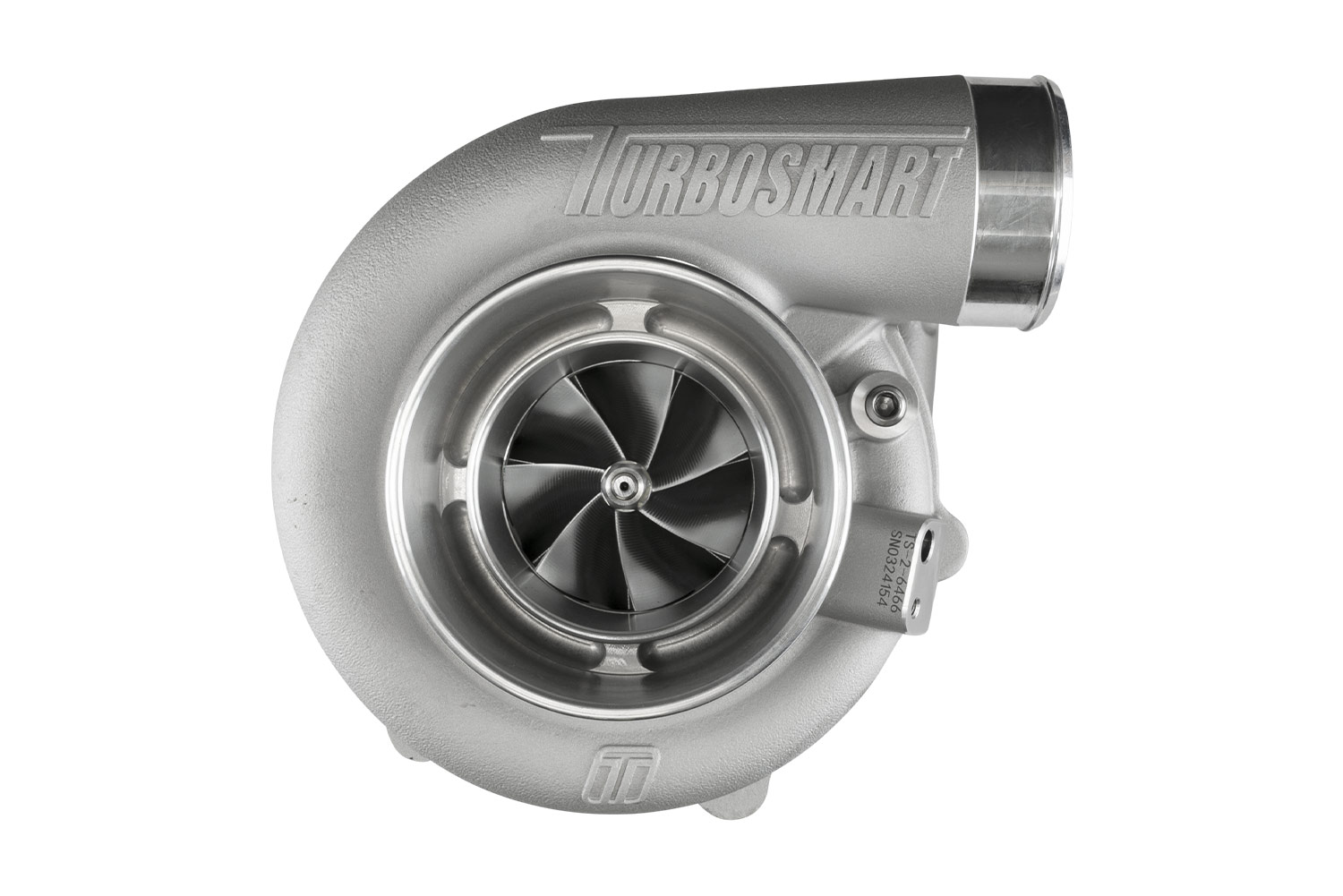

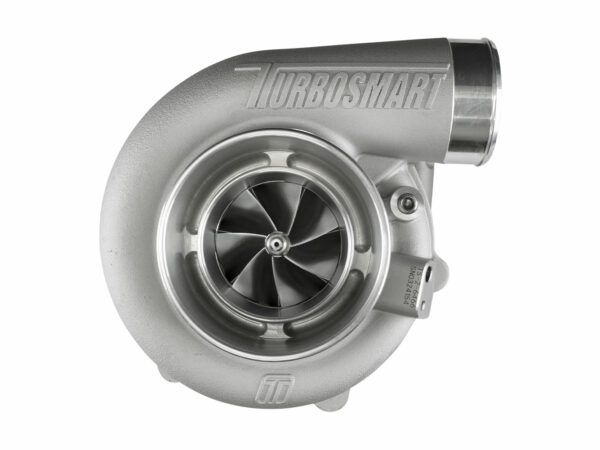

TS-2 Performance Turbocharger (Water Cooled) 6466 T4 Divided 0.84AR Externally Wastegated
$2,260.39USD (Excl. Sales Tax)
TS-2-6466B-D4084E
Smaller, Lighter and Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

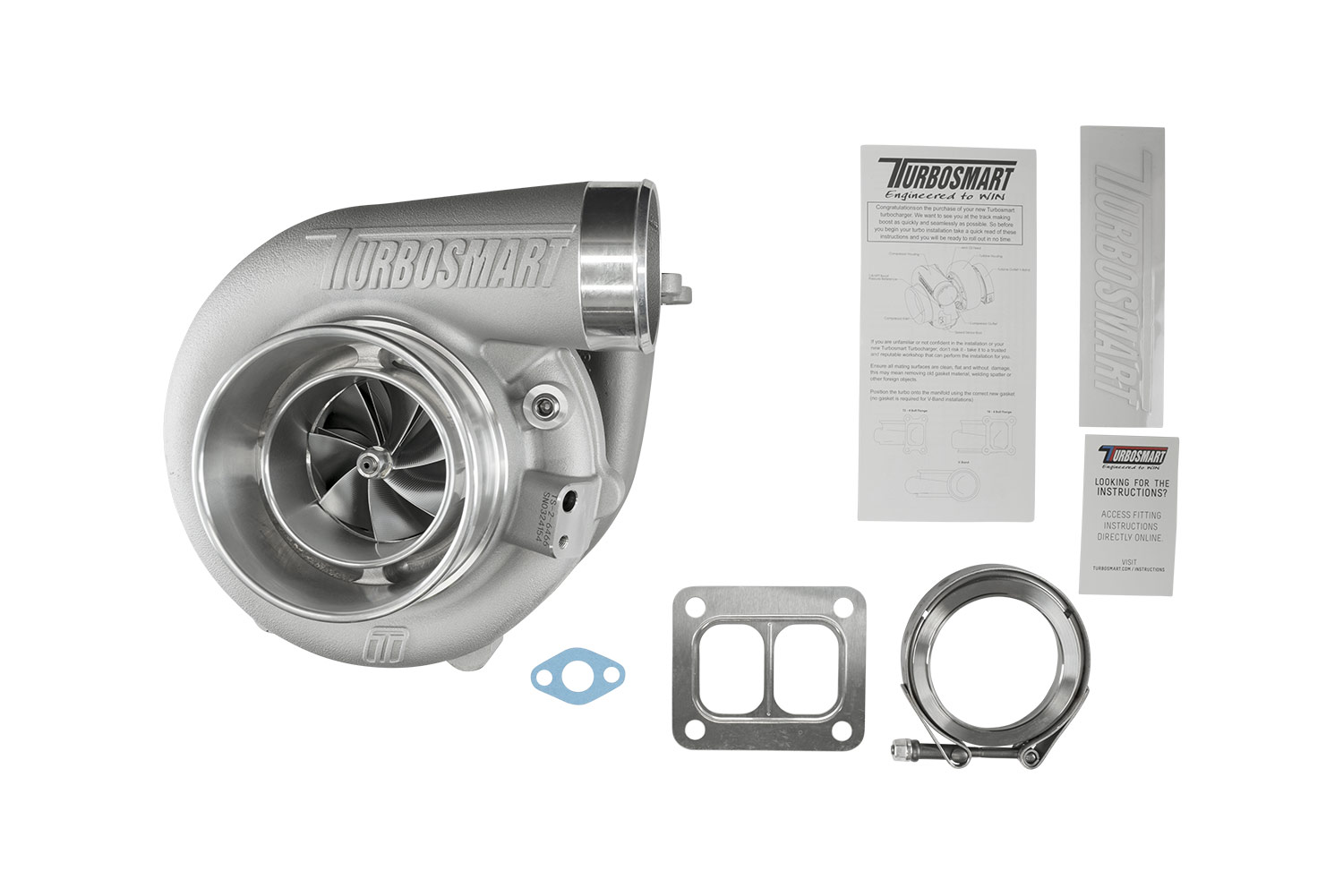

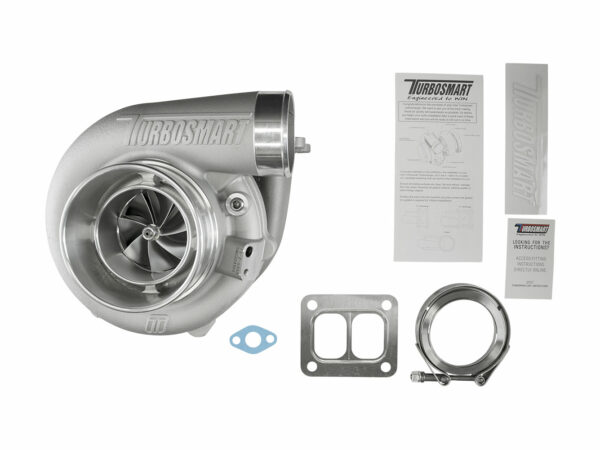

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.
The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a central shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds, which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines – While being smaller, lighter and faster in response than other solutions on the market.
Available In
TS-1 oil-cooled turbochargers
TS-2 oil and water-cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various A/R options
Internal and external wastegate options are available
Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal A/R’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing
Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm

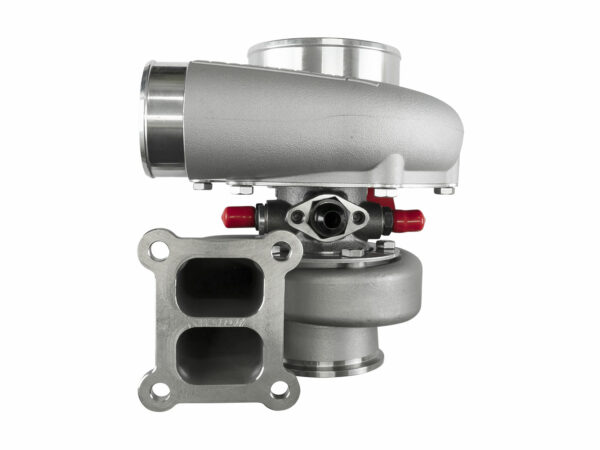

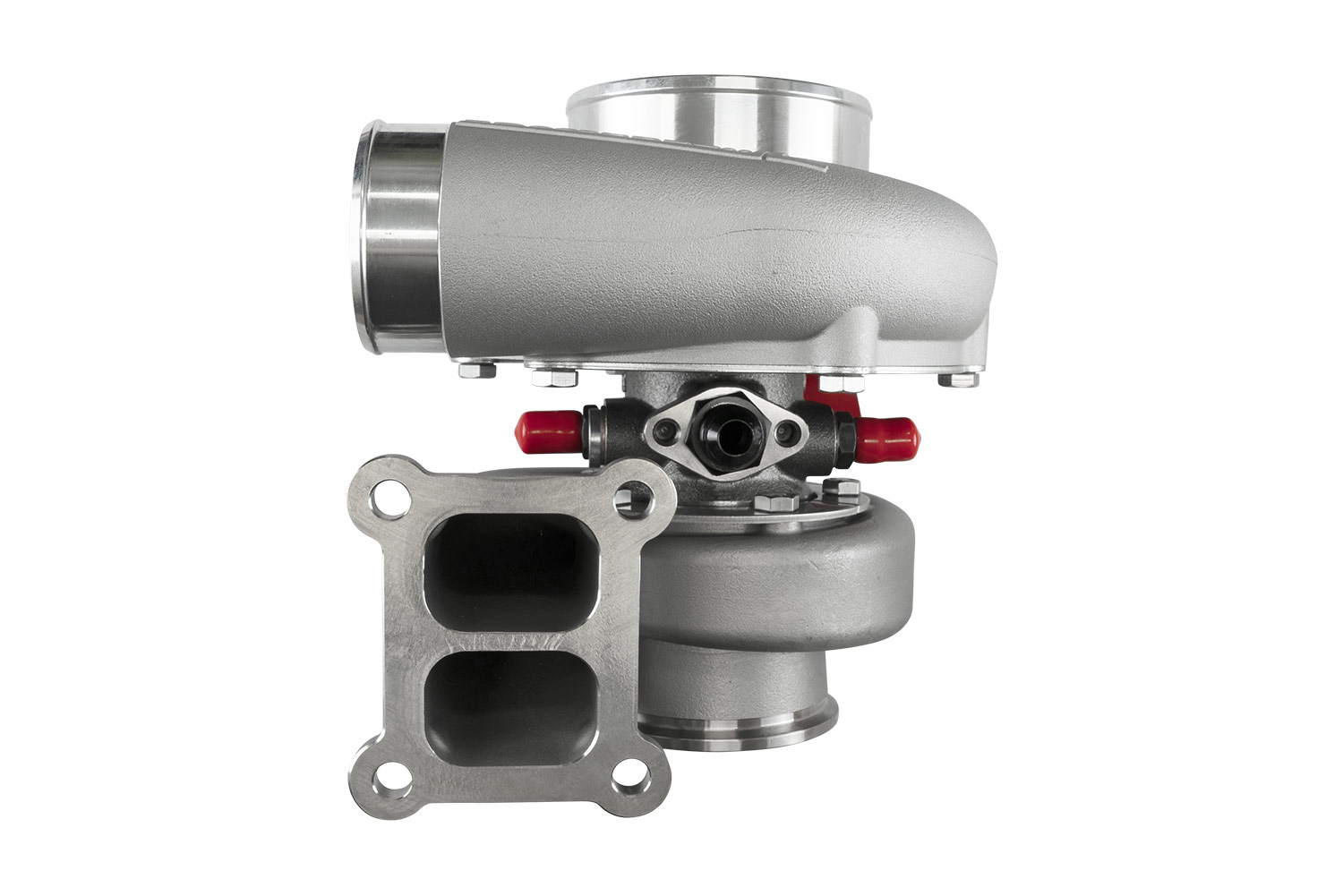

Turbine Inlet: T4 Divided Flange
Turbine Exducer: 66mm
Turbine AR: 0.84
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 750-930HP
