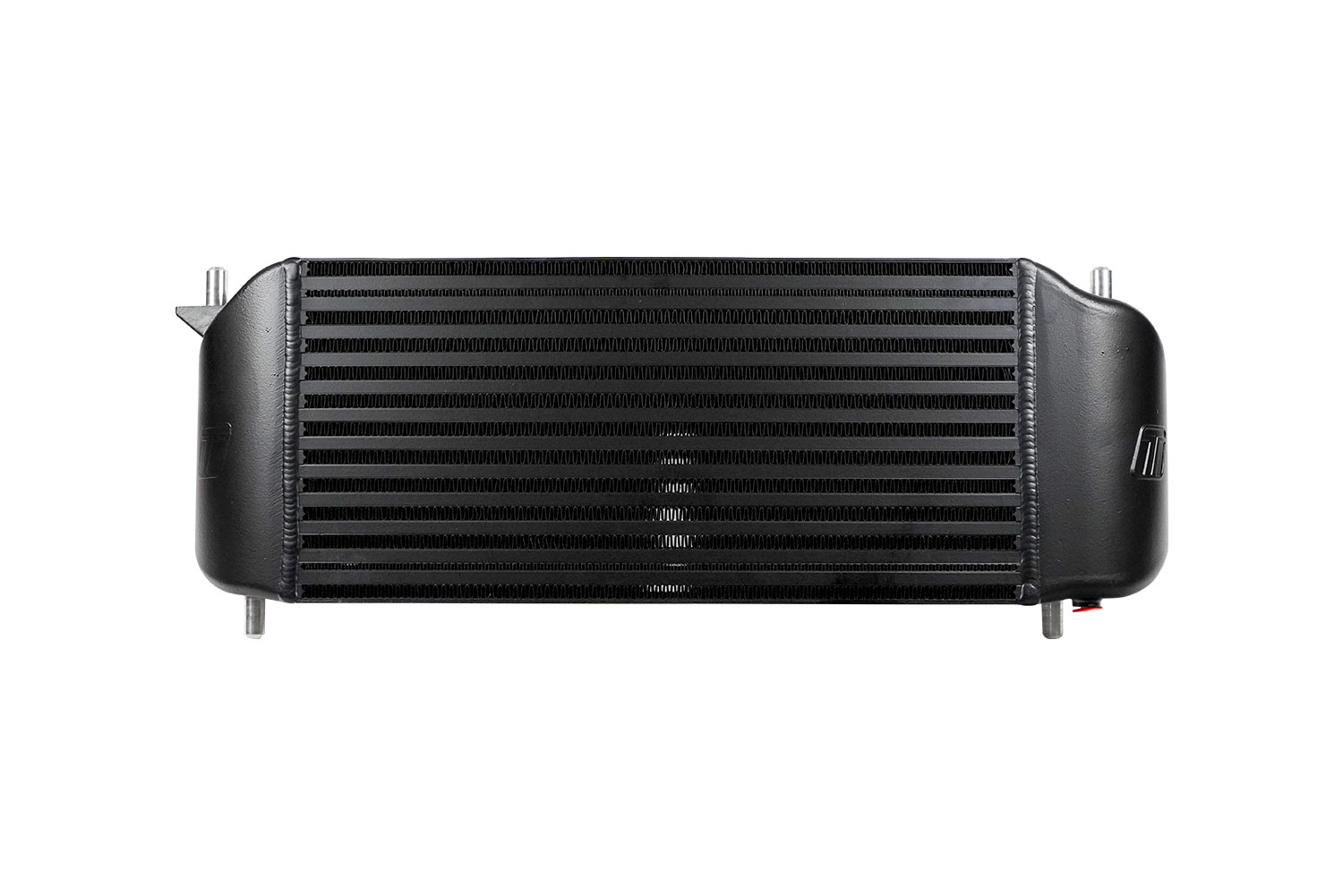

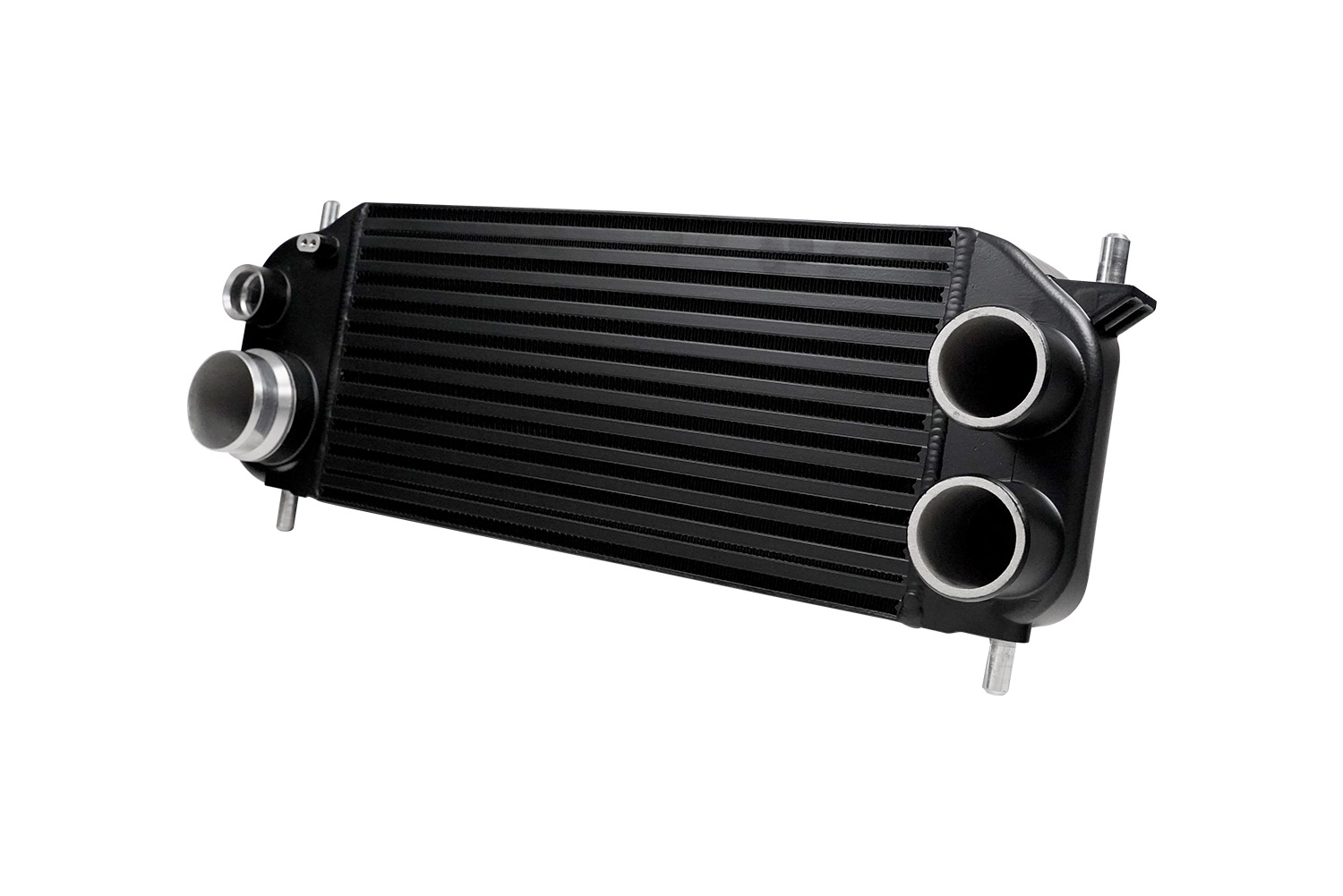

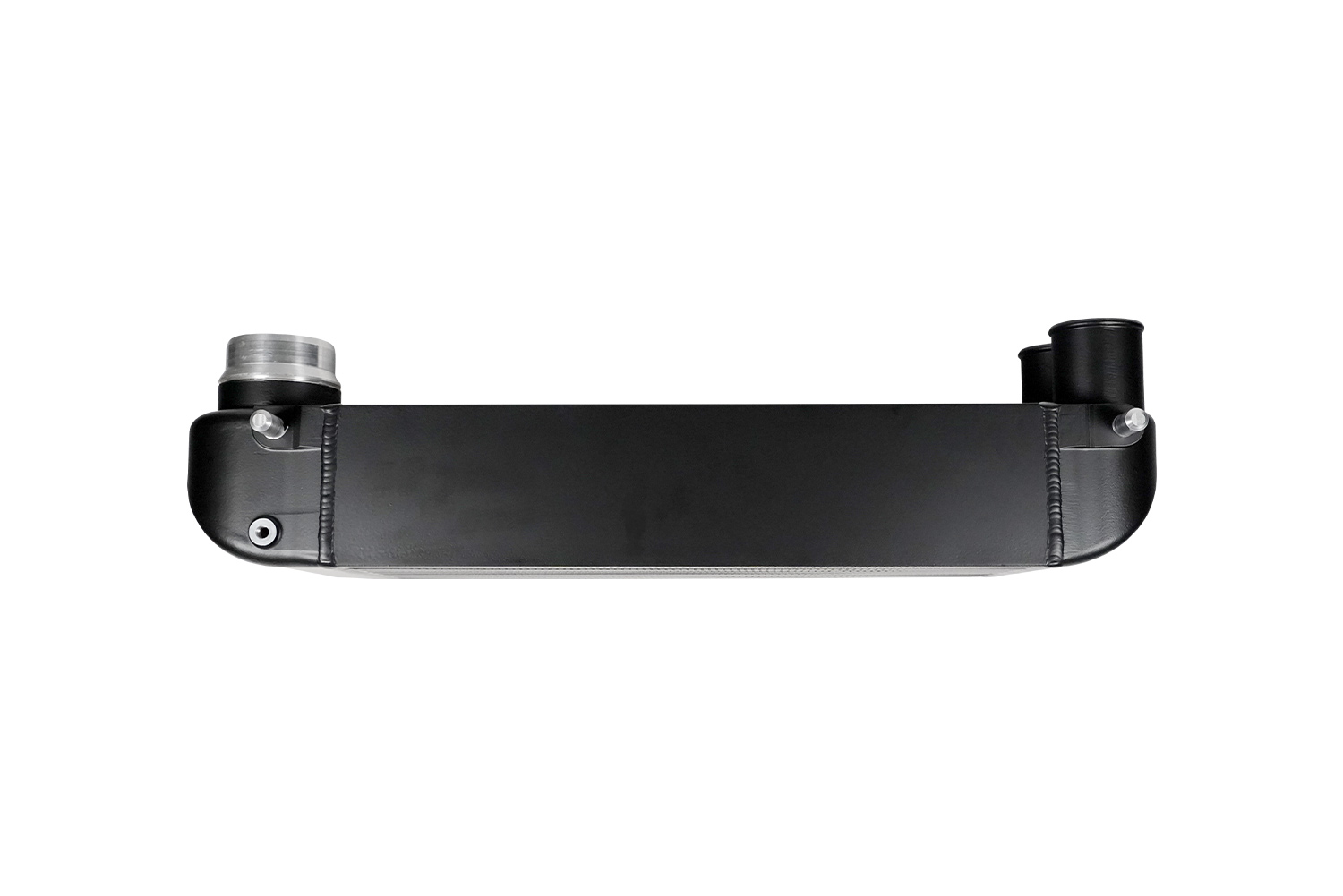

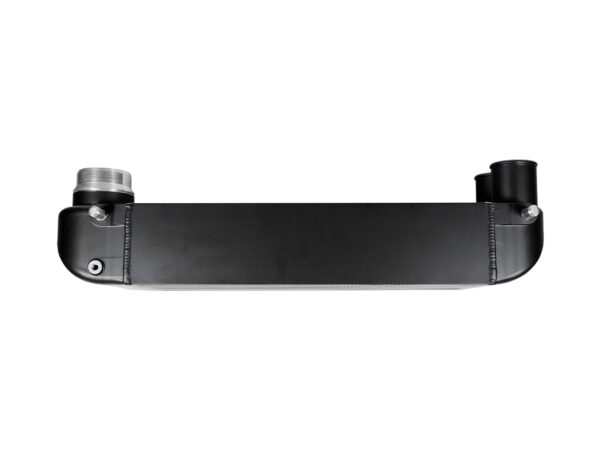

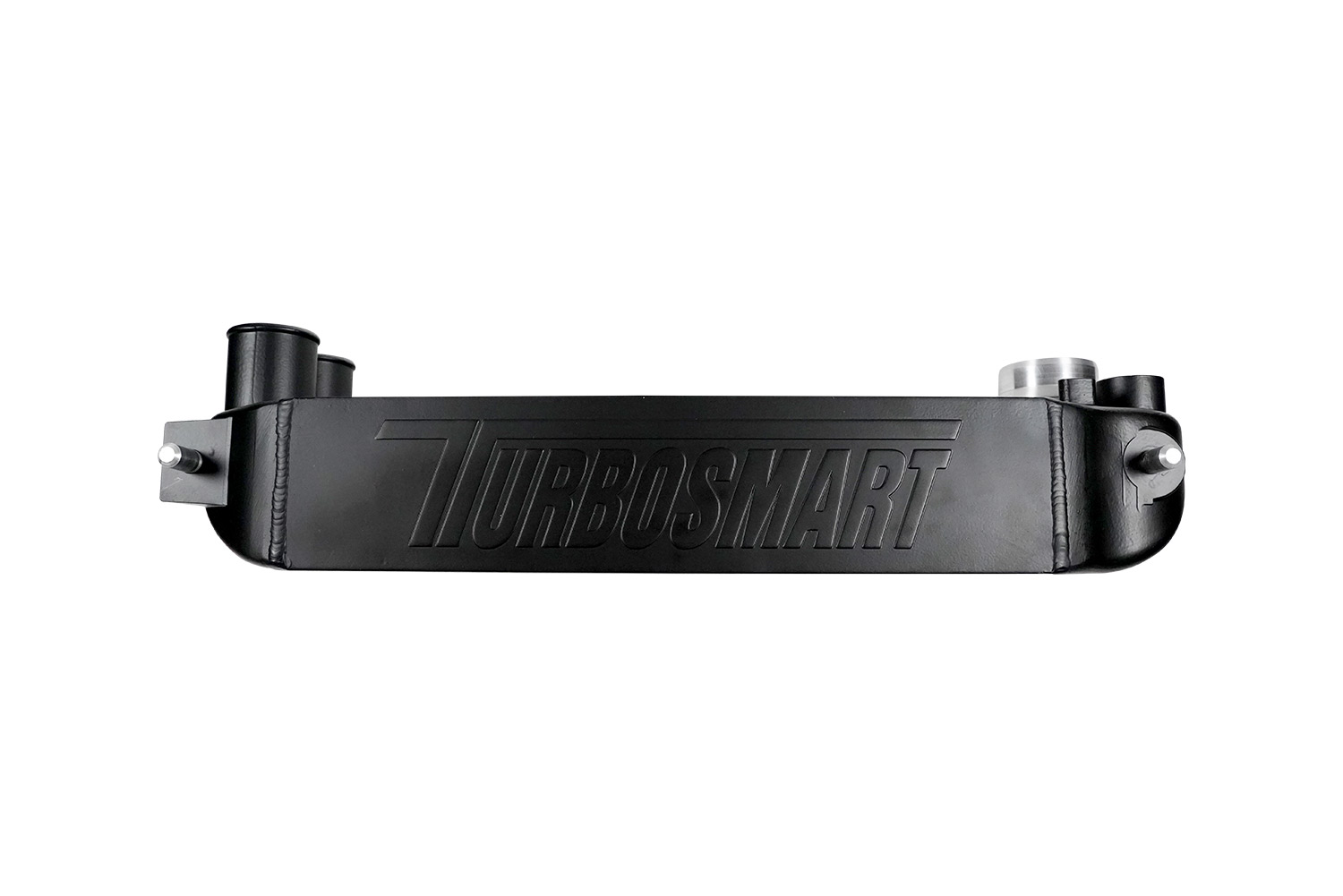

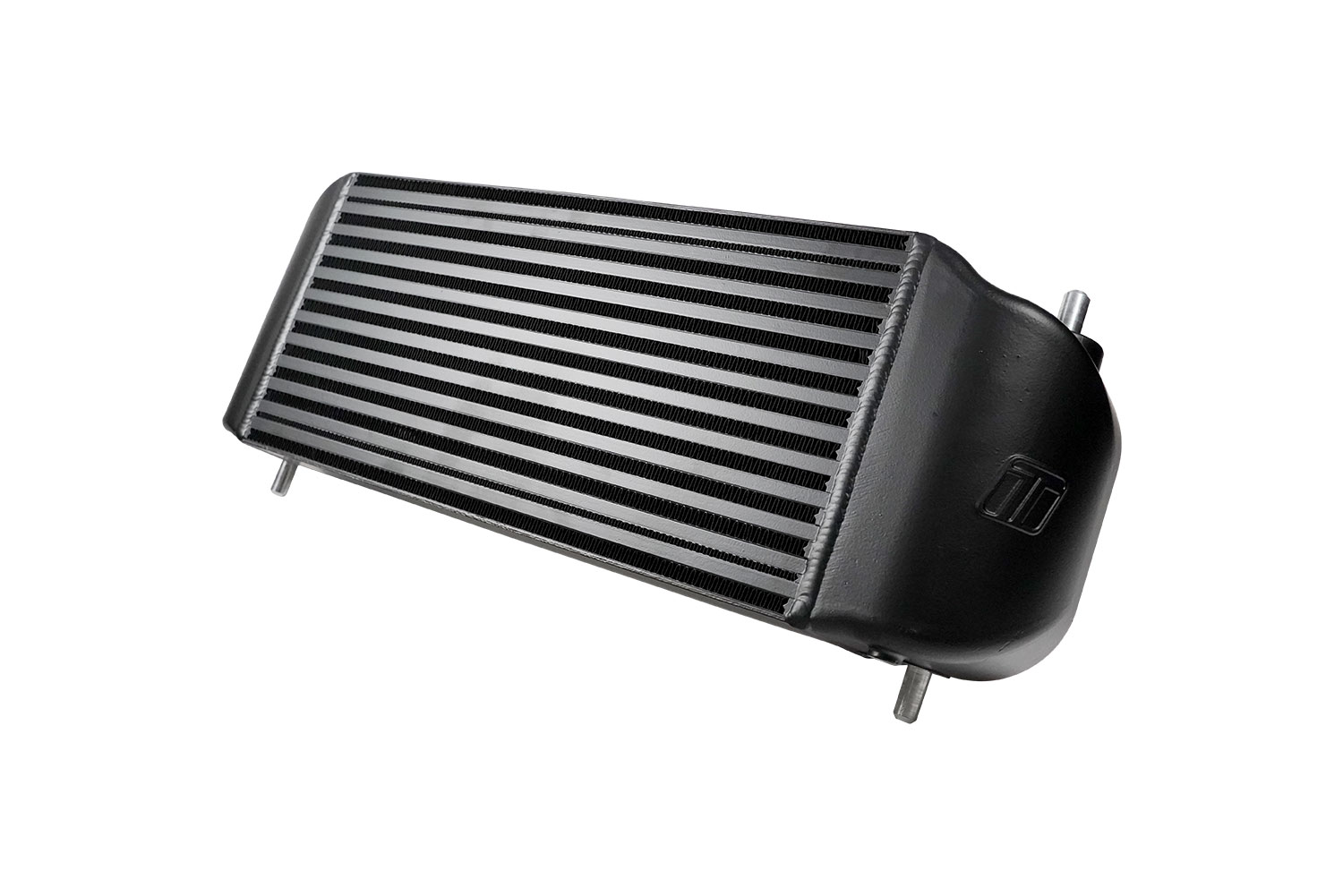

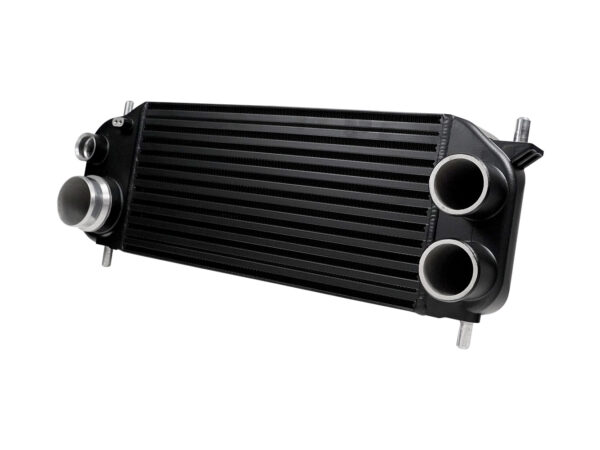

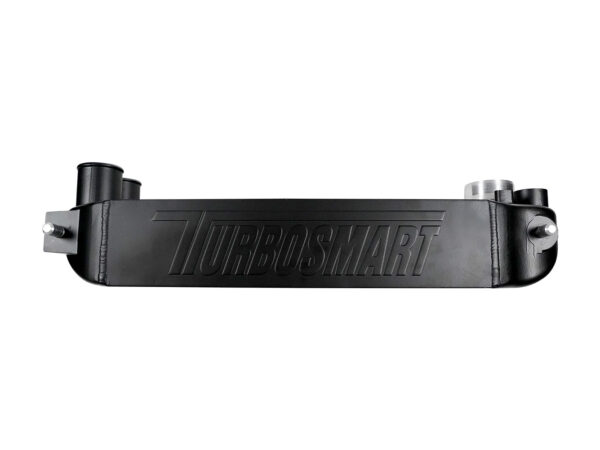

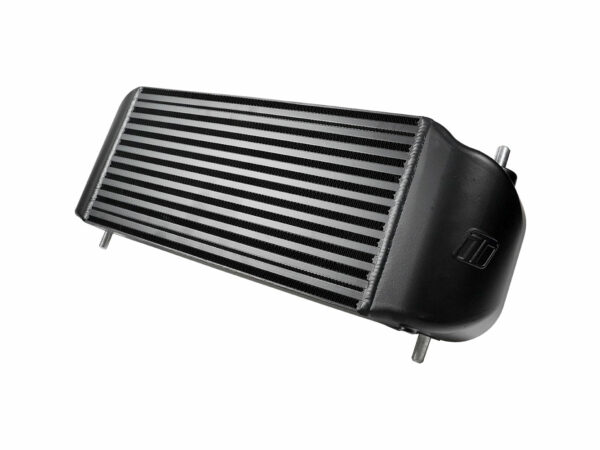

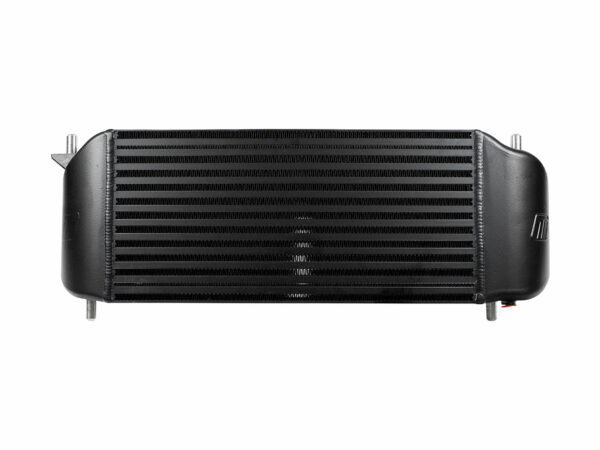

Performance Intercooler Upgrade Suit Ford F150 EcoBoost
$911.06USD (Excl. Sales Tax)
The F150 EcoBoost intercooler upgrade from Turbosmart is a direct bolt on upgrade for the factory intercooler. Massive increases in surface area and thermal mass, designed to increase mass-air flow even on standard and mildly modified engines while also providing maximum flow and efficiency for highly tuned vehicles. Includes a built a maintenance drain for blow by and condensation.
The CFD design driven and real world validated F150 intercooler upgrade has been developed to ensure a direct replacement for the factory unit, including factory locating pin / mount positions and integration with the factory / factory style charge pipes while providing an enormous +80% increase in cooling surface area with the same quality, performance and support you’ve come to expect from Turbsomart.
PRE RELEASE / PRE ORDERS ONLY. CONTACT FOR ETA
Bar and plate charge cooler design
TIG welded, no cutting, no trimming, no fabrication
80% increase in cooling surface area
Maintenance drain for condensation and blow-by
CFD modeled end-tanks for maximally balanced flow
End tanks design optimized to support OE mounts
Cast Aluminium, CFD driven design end tanks
Compatible with OEM shutter shroud
Compatible with OEM ECU calibration
Compatible with OEM and OEM style charge pipes
Note: Suitable for all Ford F150 2.7L and 3.5L EcoBoost powered V6 turbocharged vehicles including Raptor.
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
The best possible intercooler for any turbocharged engine is always a good idea. Intercoolers are responsible for reducing the temperature of the charge air that your turbocharger produces. By nature, when a turbocharger compresses air, the temperature increases. Using an intercooler to reduce this temperature increases the mass air flow available to your engine. The greater the mass air flow, the greater the performance. There is more science to it than this simple statement, but the underlying principle is scientific and fact based. The better you are able to reduce your intake temperatures, the more power you can make.
Why does my F150 need an intercooler upgrade?
Your F150 has an intercooler fitted to it from the factory, but it is commonly known to be flawed in a couple of aspects. It is specified to suit stock levels of performance and a budget while an upgrade is specifically designed to outperform this. The Ford F150 intercooler is commonly known to suffer heat soak which is where the intercooler starts to take on the heat of the charge air to the point it cannot continue reducing the intake charge air. The solution? A replacement intercooler with higher thermal mass which will take far longer to reach the critical point where heat soak occurs. The Turbosmart intercooler doesn’t just have higher thermal mass, we also massively increased the surface area by 80% to improve core efficiency while we were at it! There are some other cool features of the Turbosmart intercooler to consider, but these are the reasons you would upgrade your OEM equipment. More power, more consistently.
Why Bar and Plate?
There are two main kinds of charge air intercoolers, bar and plate is one of them. The other is called tube and fin. There is a time and place for both of them and to argue one over the other, is for another time and place. Understand that we chose bar and plate for this application, because thermal mass was important and bar and plate are higher. Tube and fin by comparison, would not be as effective at handling the number one complaint and issue F150 EcoBoost customers encounter, which is reduced performance over time due to heat soaking.
Do you have to do a tune?
No, the Factory ECU calibration will not require any changes as while there are performance advantages for even a standard vehicle, it is within the scope of the factory calibration. Consider the difference your F150 has between a cold winter's night and hot, summer's day. It can take advantage of the increase in mass air flow when it is cold at night & can continue taking advantage of it on a warmer day, with the intercooler fitted.
What’s with the maintenance drain?
Your Ford F150 fitted with the EcoBoost turbocharged V6 has a couple of known issues… You may not have noticed or really worried about them but they are there and some vehicles are more prone to it depending on mileage and the climate you operate it in. Blow-by as it is known, is engine oil vapor droplets that travel into the charge air system of the vehicle and can collect in the intercooler. Equally, condensation is known to collect in the intercooler also in some climates adding to this blow by. Why the intercooler? The intercooler in some ways acts as a baffle with the charge air hitting the side of the core & this condensation (or blow by) running down and pooling. Equally, as one of the lowest parts of the charge air and intercooler circuit, science says it is the perfect place for it to collect. This can cause some issues if not remedied regularly and the Turbosmart maintenance drain facilitates just this!
Black or Silver, Does it matter?
No. Well, it does if you have a preference for one or the other, but ultimately performance will not be impacted. It is your choice!!
