|Main Body||Aluminium 6061-T6|

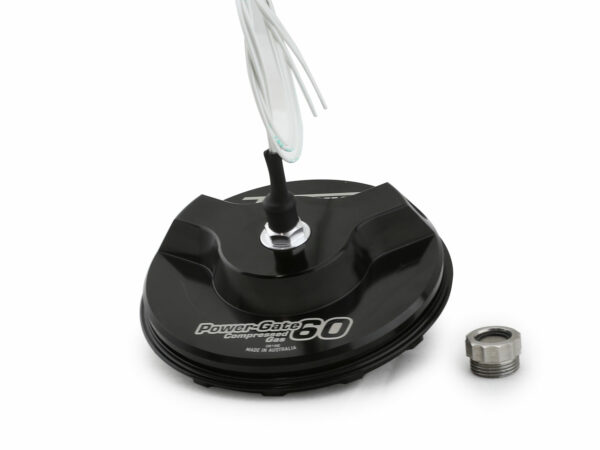

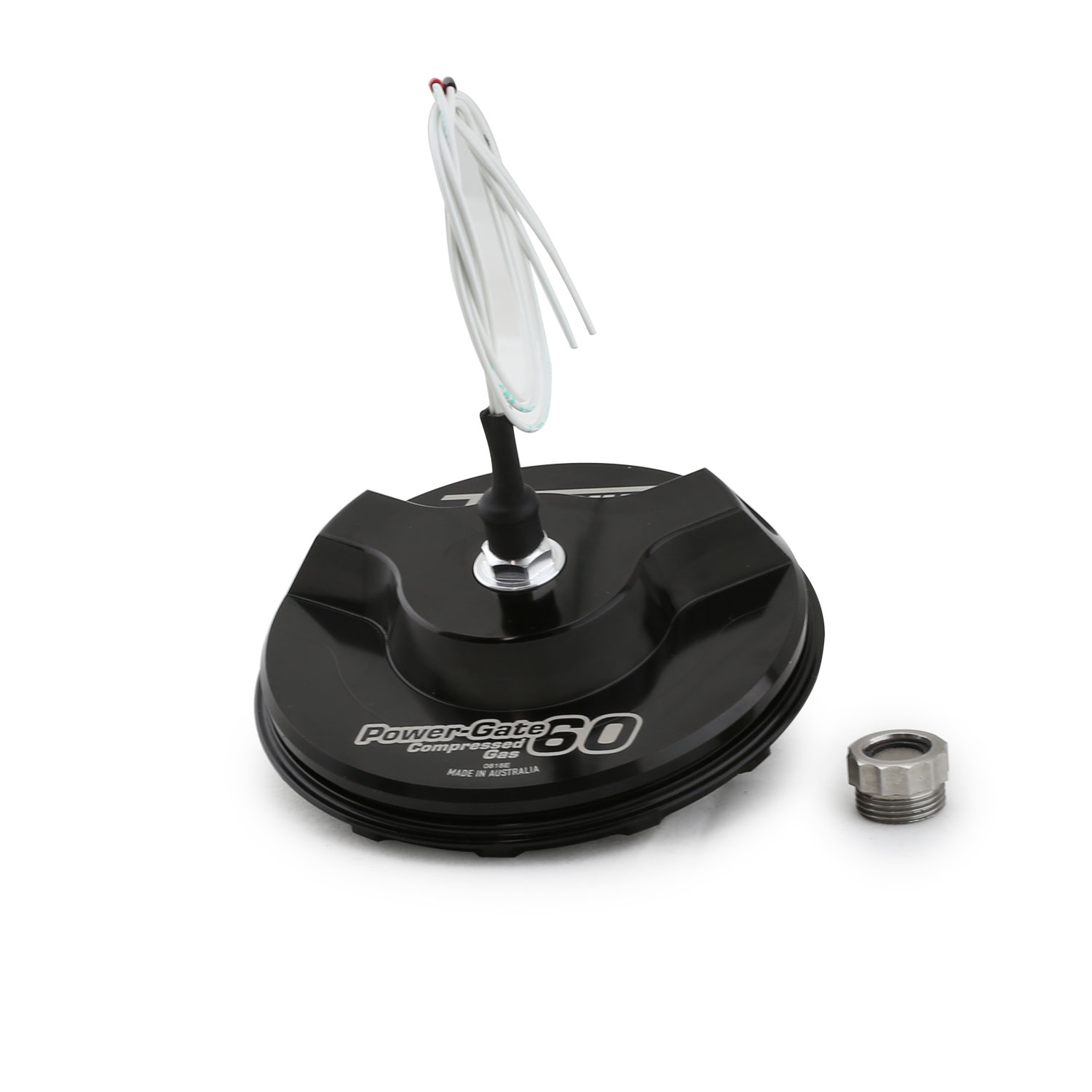

GenV CG Complete Sensor Cap (Black) Suit WG60
$266.61USD (Excl. Sales Tax)
Wastegate position sensor caps allow tuners to monitor exact wastegate valve positions and tune accordingly.
To suit Turbosmart Gen-V WG60CG Power-Gate 60 Compressed Gas
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
|Sensor Housing Diameter||14mm|
|Port Fittings Type||M13x1|
|Max. Operating Temp||170ºC / 340ºF|
|Min. Operating Temp||-40ºC / -40ºF|
|Max. Temp||2260ºC / 500ºF|
|Operating Voltage Nominal||5V|
|Max. Suply Voltage||5.5V|
|Min. Suply Voltage||4.5V|
|Output Voltage Inverse||0-2.5V|
|Sensor Refresh Rate||2.25 kHz|
|Output RMS||5 mV|
|Non-Linearity of Output Voltage over Temp.||1%|
