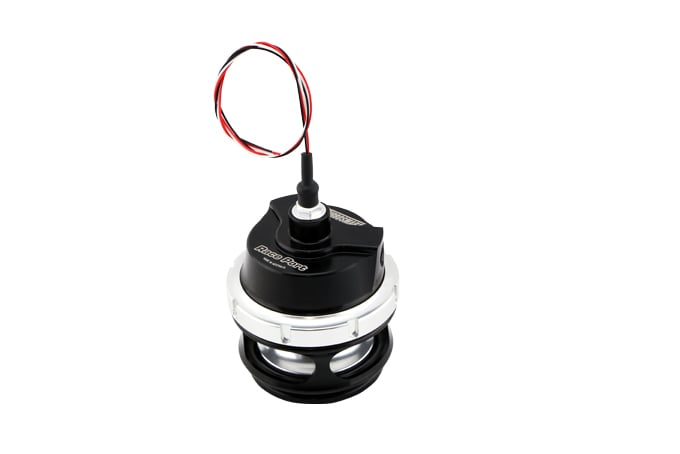

GenV RacePort BOV inc HE Position Sensor Cap (Black)
$513.28USD (Excl. Sales Tax)
The GenV RacePort ‘Sensor Cap’ allows you to monitor the blow off valve (BOV) position for diagnostic or tuning purposes, a truly unique solution and the first of its kind on the market.
If you are using BOV for traction/torque control, knowing how far it’s open is paramount to providing insight to optimise the calibration process further. Aside from a calibration benefit, check the logs if you doubt that the BOV is not staying closed when it should be. This has never been easier with the Turbosmart GenV Race Port ‘Sensor Cap’
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
GenV RacePort 50mm BOV
1/8 NPT Vacuum fittings
Sensor Cap & HE Sensor
Profiled Alloy Weld-On Fitting
Blue Spring Rated -18 to -14 InHg (installed).
GenV RacePort Diaphragm Replacement
GenV RacePort Base Flange O-Ring
GenV RacePort Weld Flange - Alloy
GenV Hall Effect Replacement Sensor
GenV RacePort Spring 8InHg - Orange
GenV RacePeort Spring 15InHg - Green
GenV RacePort Spring 18InHg - Blue
GenV RacePort Spring Set (3) Including C Spanner
GenV RacePort Sensor Cap Upgrade - Black
GenV RacePort Flange Blanking Plate
GenV RacePort Weld Flange - Stainless Steel
1/8NPT to 6mm Hose End Adaptor
1/8NPT to -3AN Male to Male Adaptor
1/8NPT to -4AN Male to Male Adaptor
1/8NPT 90º Poshloc Fitting - Hi-Temp (1/4")
1/8NPT T-Piece Pushloc Fitting - Hi-Temp (1/4")
1/8NPT Straight Pushloc Fitting - Hi-Temp (1/4")
How much do you have? We’ve not found a limit on an actual vehicle & this is confirmed on Competition & Record Holding Pro-Mod & Diesel Race Engines reaching for 120psi / Over 8 Bar Boost. The limit is far higher than that – Proven.
OK, so what is the limit of this valve?
The valve is capable of bypassing ~2500HP worth of airflow – meaning it can bypass about 2500HP and seal against 2500HP when required. If you exceed that, it won’t fail or let you down, but you may experience some compressor surge.
What if I am expecting over 2500 HP?
We have two options for you! Firstly, you could simply run an additional GenV RacePort or investigate Turbosmart’s PowerPort range for up to 3000HP of bypass flow capability.
Why Turbosmart RacePort?
Turbosmart sets the bar for flow and footprint! We’re talking 50% lighter and 25% smaller than the competition. Designed with a specialised diaphragm system unique to Turbosmart, the Race Port is the fastest-responding valve on the market.
What Fittings Does it use?
Like all GenV products, the GenV RacePort BOV range is supplied with 1/8th NPT ports and simple hose connection barbs in the box.
Can I upgrade to a Sensor Cap?
Yes! If you own a GenV RacePort, Black Sensor Cap Upgrades kits are available. If you haven’t yet made your purchase, the GenV RacePort range offers the RacePort with Sensor Cap pre-installed as an off-the-shelf item. Note that the GenV Sensor Cap upgrade kits are specific to the GenV range and will not suit Gen4 or earlier versions of the RacePort.
I have a supercharger – Is the GenV RacePort suited to my application?
Yes! The GenV Range includes a supercharger-specific version fitted with a soft spring that operates with supercharged systems. The softer supercharger spring is available as a spare if you already have a standard RacePort.
Does the GenV RacePort fit ‘other’ 50mm flanges?
Yes, if you look through the range of GenV RacePort BOVs from Turbosmart, you’ll see some of them refer to ‘Female Flange’ & this is what you’re after – there’s a unique part number, just for that!
