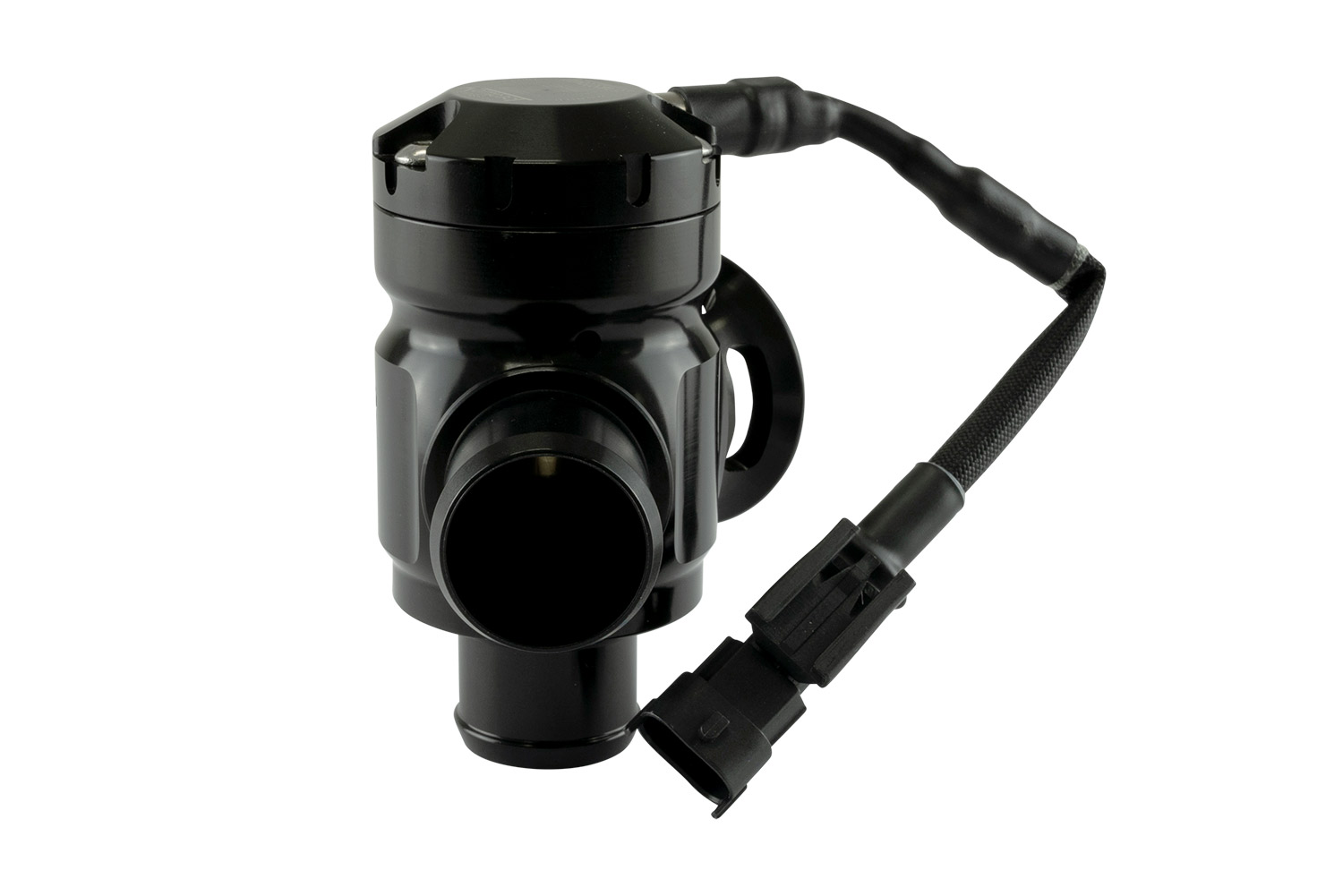

Kompact EM BOV VR8 Dual Port
$316.61USD (Excl. Sales Tax)
The Multiple Award-winning Kompact EM Series of Upgraded Diverter Valves are the world’s first genuine plug-and-play Upgrade solution for your factory diverter valve. Unplug and unbolt your OEM Valve, and install a Kompact EM Valve. No adaptors, hoses or extra assembly is required.
The Kompact EM Valve Series from Turbosmart takes the motorsport-proven, billet valve technology and adds an onboard proprietary solenoid system and internal pressure control channels for a simple plug-and-play valve with full OE integration and control. There are no reference hoses, separate solenoids, or fiddly bits – Bolt-on and plugin!
You can count on unmatched performance & reliability as a direct replacement for your factory diverter valve. The Kompact EM Valves overcome the common faults associated with plastic factory valves through our Boost-Balance Valve Design (The more boost you have, the better it seals), Positive Seal O-Ring on the Piston’s face and Billet Construction. No matter your application, the Kompact EM Series will hold more boost and be more responsive in any environment.
Available In
Dual Port / Vent to Atmosphere: TS-0223-1089
Plumback / Recirculating: TS-0223-1289
Features
Boost-Balance Valve Technology
Patented integrated pressure control
True plug-and-play upgrade
Integrated proprietary high-temperature solenoid valve
Billet construction with high-temperature o-rings
Fitment available in Plumback or Dual Port options
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.
Why would I upgrade my factory Diverter or Bypass Valve?
Fundamentally, factory Diverter Valves are built to a price point rather than with performance in mind. At Turbosmart, we want you to have the best performance available. Our range of upgraded valves is designed to overcome the limitations of factory equipment with improved sealing and valve dynamics. A Turbosmart Upgraded Valve will ensure you have all your available boosts with maximum response.
How does the Turbosmart Valve provide performance benefits?
The Turbsmart Range of Direct Replacement Valves uses our Unique Boost-Balance Valve Technology. We also have a Positive Seal O-Ring on the Piston Face made from Motorsport Proven & Hand Assembled, Billet Aluminum. These features ensure the fastest responding valve and incredible boost-holding characteristics in a virtually indestructible valve.
What is the Turbosmart Boost-Balance System?
Our Valves are designed to ‘actuate or open’ via a pressure differential rather than boost alone. This means we can run the lightest possible spring for a super-fast response, but it also means both sides of the piston are subjected to the same boost pressure when accelerating and under load. This means no matter how much boost you run, Turbosmart Valves will not open unless you want them to! At any point, you have all your boost pushing it closed PLUS the spring itself!
What is the Turbosmart Positive Seal O-Ring, and why does it matter?
As mentioned above, due to our Boost-Balance technology, the piston of Turbosmart valves is always pushed into the valve seat when accelerating and under load. On Turbosmart valves, unlike others, we use a Viton O-Ring on the face of the valve, which ensures the best possible seal against the body. This seal means maximum boost pressure at all times and improves boost response.
Can I Vacuum or Smoke test my Kompact Valve?
You can vacuum test these valves. However, you will need a hi-flowing mechanical vacuum pump – you cannot use a hand-actuated vacuum pump as these do not replicate the flow your valve would see when fitted to an engine, meaning you will likely achieve nothing except for a ‘False-Positive’ to a leak test. These do not use an O-ring on the side of the piston and are not based on a diaphragm like the OE equipment. The design focus is on sealing, speed and overall flow. This design and lack of diaphragm or O-Ring also mean you cannot use a smoke test to test or validate a Turbosmart Valve.
How Much Horsepower will these valves handle?
More than you have! Due to the unique Turbosmart Boost-Balance System, you can’t have too much power or boost for the Kompact Range of Vales and at no point will they leak based on ‘Too-Much’ anything. The more boost you run, the better they will seal. With that said, extremely modified engines may be able to find the limit of how much these valves can bypass when open & this is the only limit. If you’re at this level, you may want to consider a remote-mounted valve with more flow potential to avoid audible compressor surge. However, too much boost or power will not open or vent the valve.
Fiat Abarth 595 and 695 vehicles are assembled in Italy or Poland. North American-delivered Fiat 500 Abarths are assembled in Mexico and will require VR15 EM ( TS-0223-1084 & TS-0223-1284)
Unsure if this product is suitable for your car? Use the FIND MY CAR application to search for a range of vehicle-specific Turbosmart products specifically designed for your car.
