OPR T40 Oil Pressure Regulator 40psi (Black)
$129.99USD (Excl. Sales Tax)

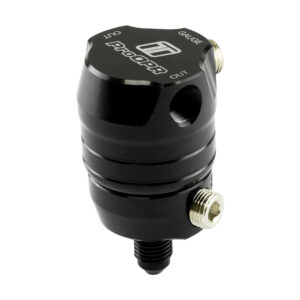

Turbosmart's Patent Pending OPRt40 is an Oil Pressure Regulator designed for your Turbocharger.
Many Turbochargers are built around a bearing and oil pressure profile much lower than is …
Turbosmart’s Patent Pending OPRt40 is an Oil Pressure Regulator designed for your Turbocharger.
Many Turbochargers are built around a bearing and oil pressure profile much lower than is seen by modern & hi-performance, engines and feeding these turbochargers the appropriate amount of oil pressure has always been a challenge. Traditional methods to limit oil pressure have been with a restrictor, aimed at reducing pressure – However this also reduces flow.
Turbosmart’s OPRt40 is a true regulator in that target oil pressure oil 40psi can be achieved without compromising oil flow. This takes the guess work out of restrictor, or feed and drain hose selection and ensure the oil going to the turbocharger, never exceeds the manufacturers tolerances – This will provide you rock solid oil supply pressure, within the manufactures tolerances.
Not sure this is right for you? Check out our video on ‘Why you need a Turbosmart OPRt40‘
Fixed 40psi Configuration
-4 AN Ports
1/8 NPT Gauge Port
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

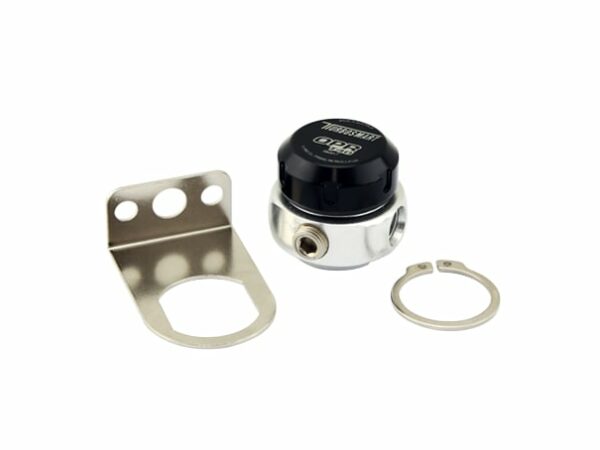

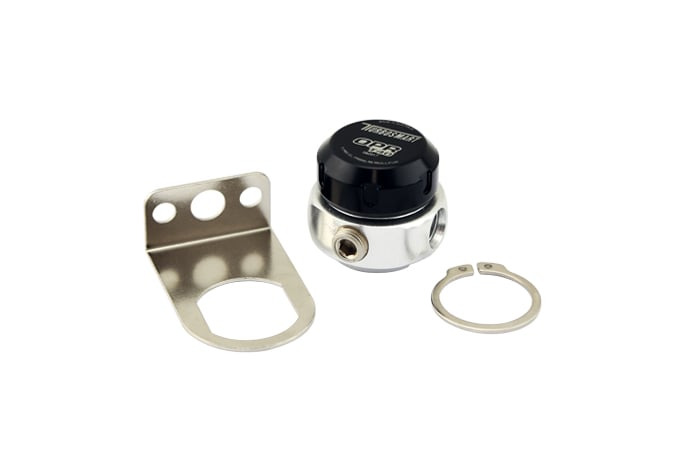

OPRT40 Mounting Bracket & Circlip
Turbo Oil Feed Filter -3AN
Turbo Oil Feed Filter -4AN
Turbo Oil Feed Filter -4an to -4AN ORB
Turbo Oil Drain Adapter: 38-44mm
Turbo Oil Drain Adapter: 52.4mm
Turbo Oil Drain Adapter: 50.8mm
Turbo Oil Drain 70mm Extension: -10AN
Turbo Oil Drain 70mm Extension: -8AN
Will this stop my Turbo blowing smoke?
Very likely, yes. It is a very common misconception that turbo’s have seals that leak when they fail. Turbocharger seals are more like a piston rings in an engine and designed to keep oil out of the exhaust and equally, exhaust out of the oil. They work on an assumed oil pressure profile or usually around 40psi – If you have higher oil pressure than that in your turbo, it can actually get straight past the ‘seal’ and that can cause smoking. It’s very common to see this on startup on some engines where ‘cold’ engine oil pressure is quite high.
Will this work for all turbo’s?
No. The 40 psi these are set at is suitable for Ball Bearing and some other modern turbochargers of various bearing design. You should check with your turbocharger manufacturer as to the supply requirements – We’ve found 40 psi to be right for most modern & hi performance turbochargers on the market.
Can I use it as a T piece for my twin turbo engine?
No, you will need a separate T piece. There are 3 fittings for the oil system – In, Out (to the Turbo) and bypass (to your engine oil supply / sump etc). There is also a 1/8NPT port on there for either a pressure gauge, or a sensor.
Can I use just one OPR40, for a Twin Turbo?
Yes. You will need to ‘Tee’ the Oil line after the outlet of the OPR40. As above, this cannot be used as a T piece, but a T-Piece on the outlet will provide enough oil flow for 2 Turbochargers.
Is the Turbosmart OPRT40 it adjustable?
No. We’ve pre-set it to 40psi as this is the ideal pressure for most ball bearing turbochargers. We’ve pre-set it & not provided any adjustment so as to ensure you don’t have to risk your valuable turbocharger on startup by setting or adjusting the regulator – It’s good to go, straight out of the box.
Will this always produce 40 psi?
Ultimately, 40 psi was chosen as a target pressure as it sits firmly in the middle of the window of oil pressure requirements, for most common / performance ball bearing turbochargers. It does not need to be exact, but the OPr40 is quite precise. It is however limited by it’s fitment. As a guide, you will need at least 40psi oil pressure to start with. A regulator cannot create pressure, it can only modulate it. Equally, it can only modulate if if there return lines are plumbed without restriction. A restricted return line, or introducing the return line into a high pressure area (such as an Turbo main oil drain) can impact the OPR40’s ability to regulate the pressure.
