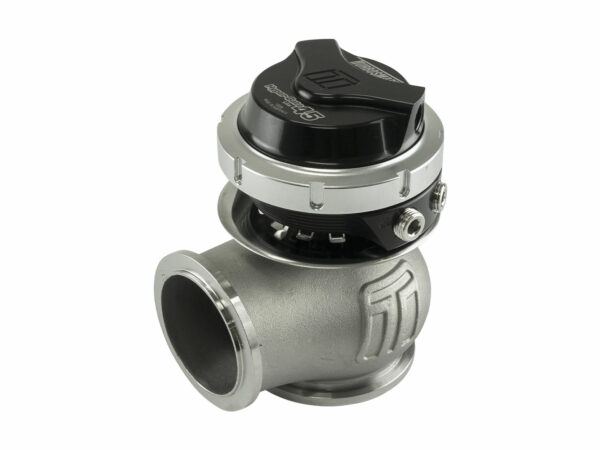

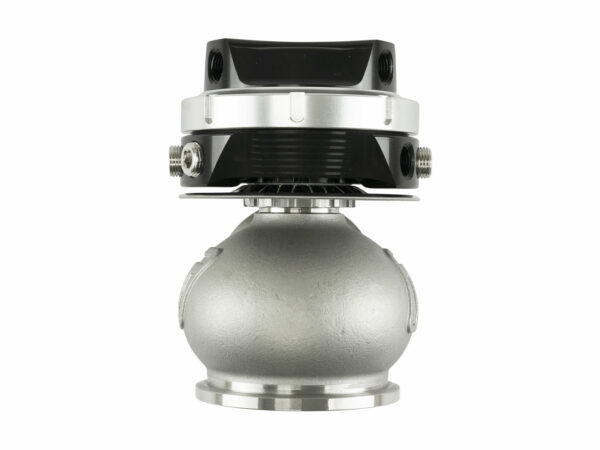

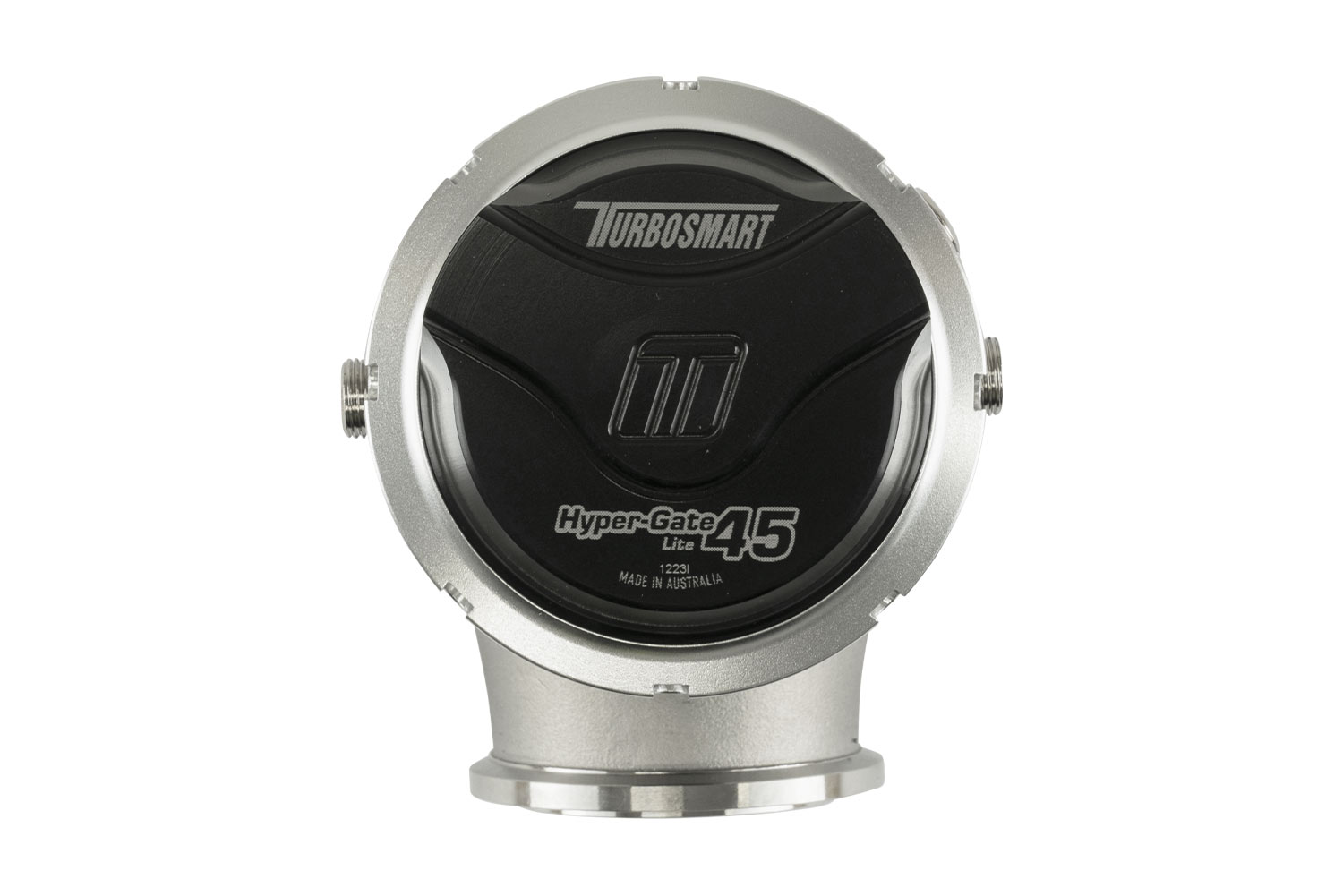

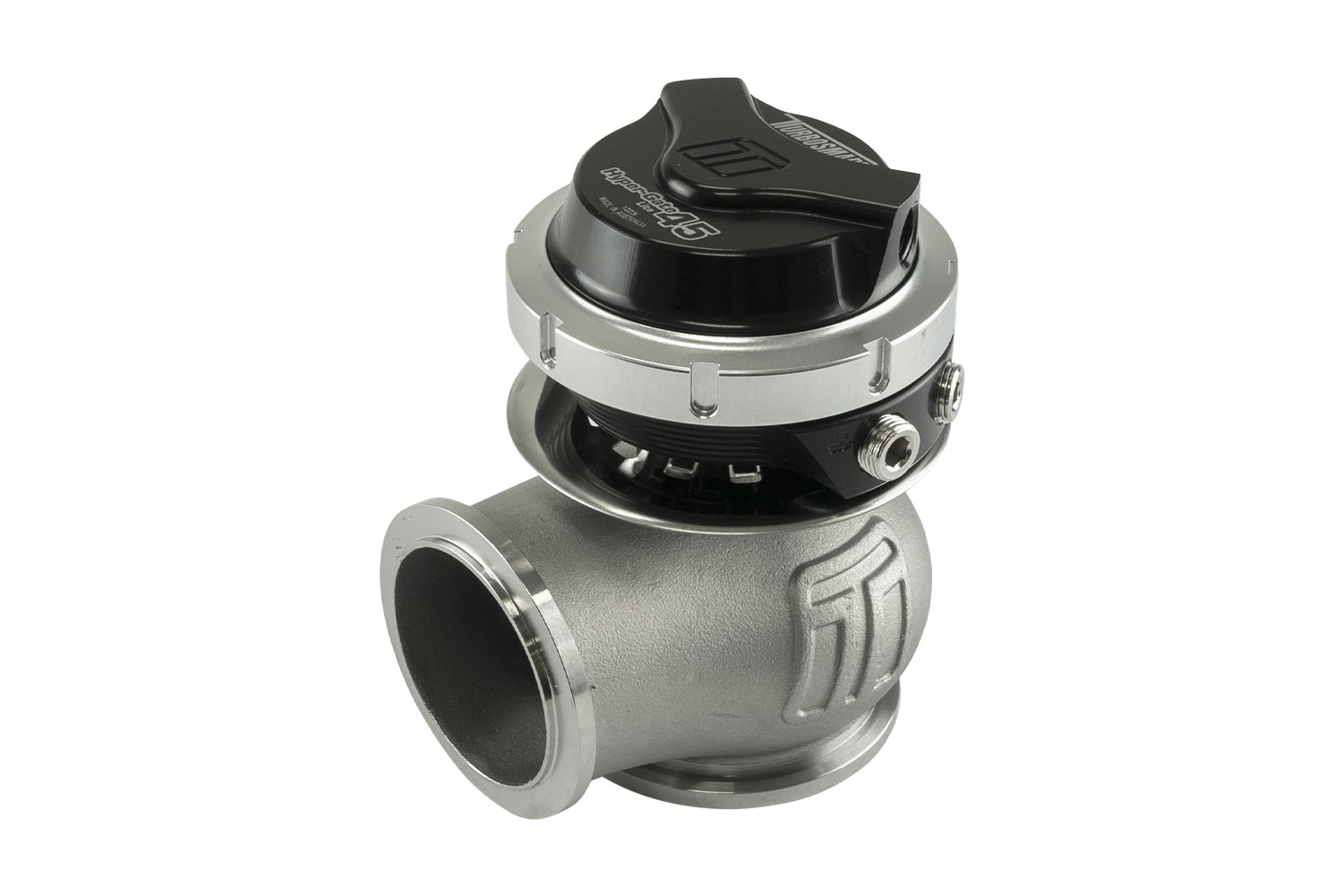

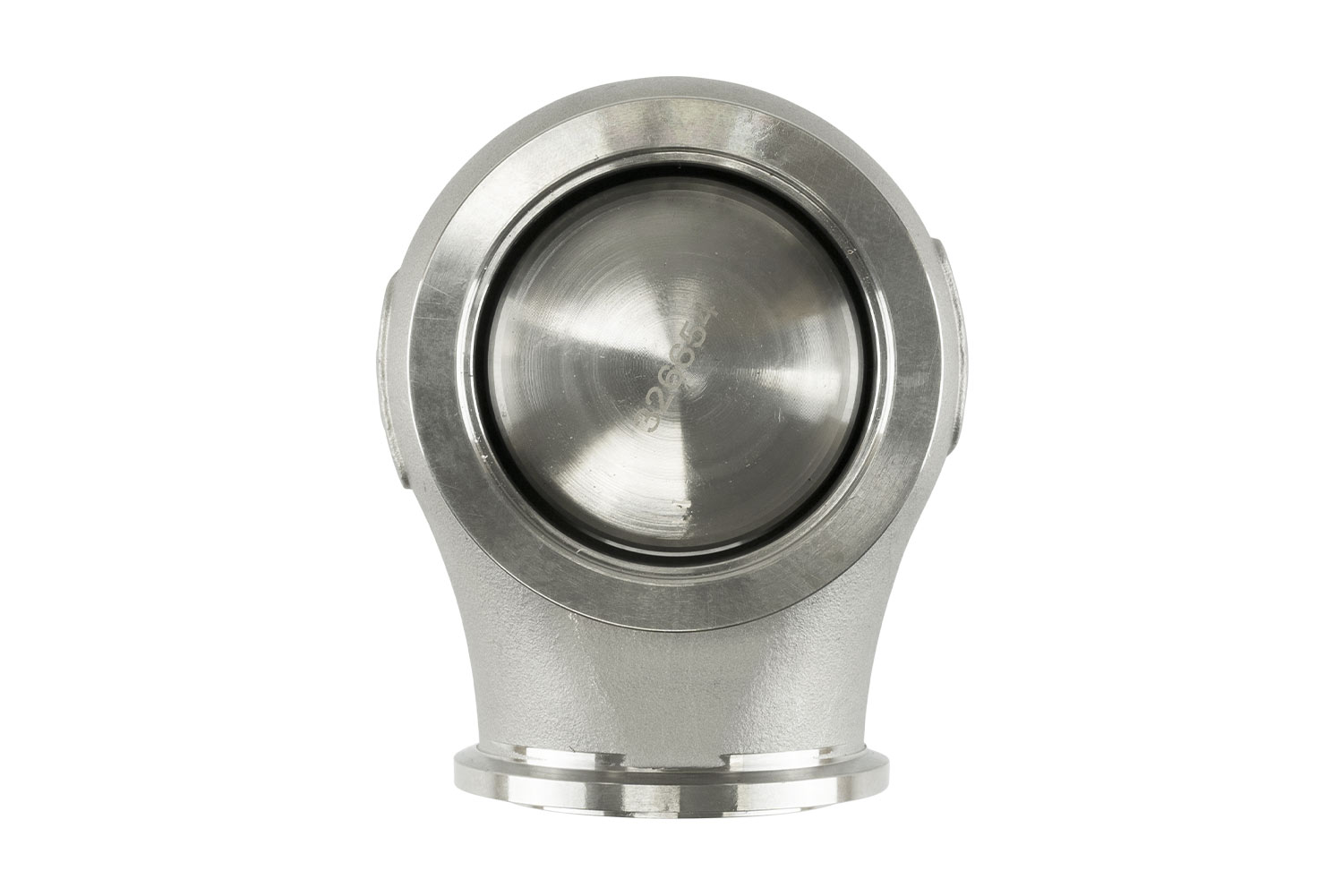

GenV Hypergate45-Lite 7psi External Wastegate (Black)
$466.61USD (Excl. Sales Tax)
The GenV HyperGate45 Lite external wastegate is a cost-effective, high performing 45mm external wastegate with a compact actuator for use in engine bays with limited space. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
HyperGate45 Lite (Black) 7PSI: TS-0553-1602
HyperGate45 Lite (Black) 14PSI: TS-0553-1612
HyperGate45 Lite (Sleeper) 14PSI: TS-0553-1615
Low Profile (Reduced hieght & Diameter) Actuator Housing
Class Leading Thermal Performance
Class Leading CFD Driven & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Cooling
Optional Position Sensor Available Seperately
Rotatable / Clockable Actuator Housing
45mm V-Band Fitment
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

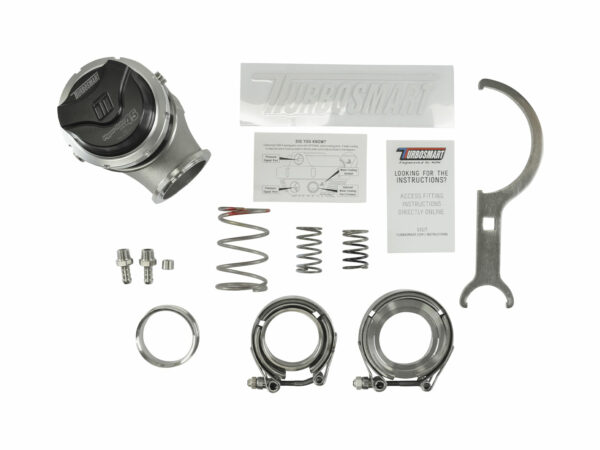

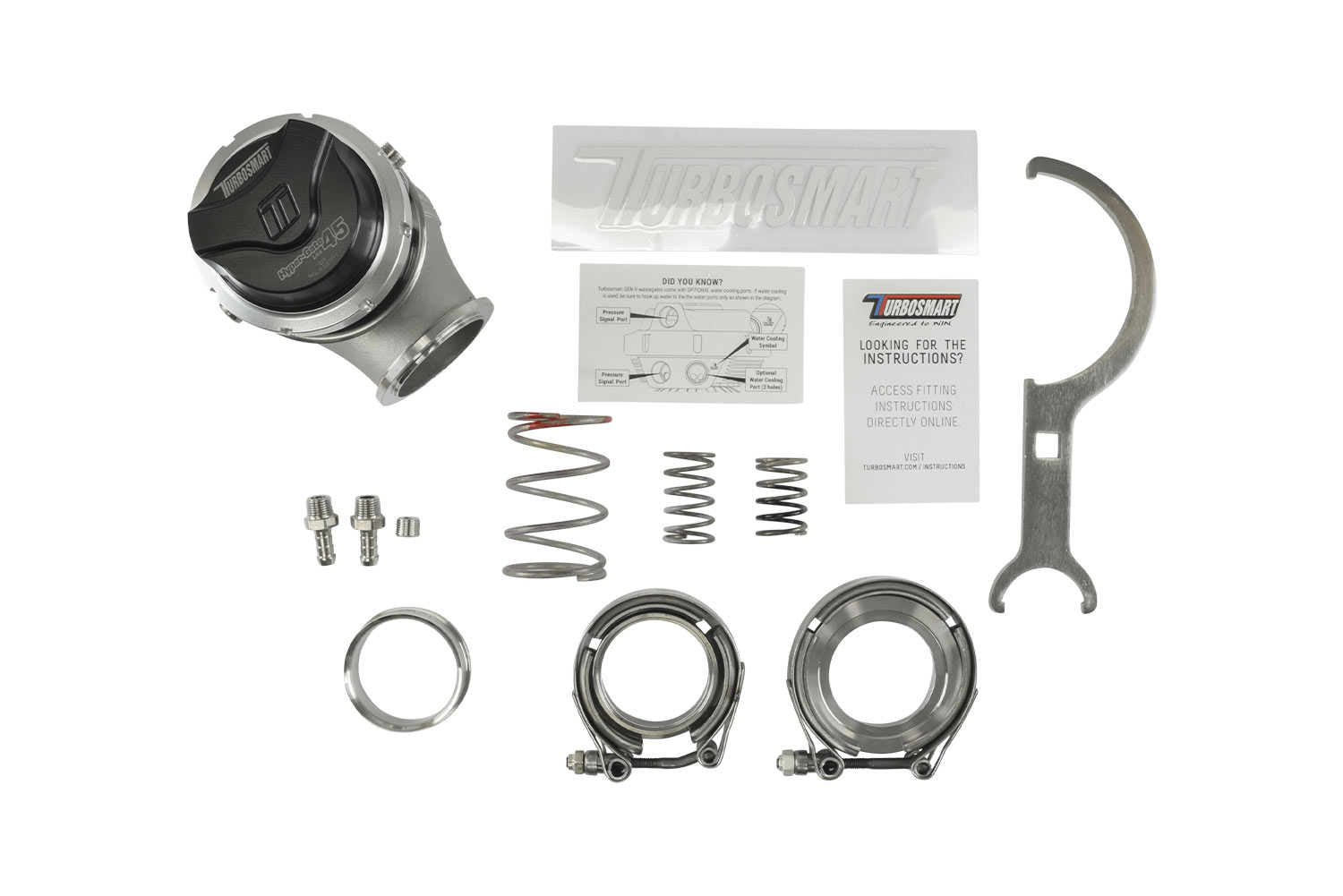

GenV Wastegate Unit
All Spring Included in Box
Wastegare Pre-fitted as per description
GenV SS316 Valve Seat
Inlet & Outlet Weld Flanges
Inlet & Outlet V-Bands
Locking Collar Tool
4 x 1/8 NPT plugs
2 x 1/8 NPT Hose Tail Fittings
GenV HyperGate45 Lite Diaphragm Replacement
GenV HyperGate45-Lite Locking Collar
GenV HyperGate45 Lite Locking Collar Tool
GenV HyperGate45 Lite Slave Collar / Heat Shield
GenV HyperGate45 Lite Valve Seat
GenV HyperGate45 Lite Valve & Guide Seat
GenV HyperGate45 Lite Weld Flange: Inlet
GenV HyperGate45 Lite Weld Flange: Outlet
GenV HyperGate45 Lite V-Band: Inlet
GenV HyperGate45 Lite V-Band: Outlet
GenV HyperGate45 Lite V-Band Nuts
GenV HyperGate45 Lite 3PSI Black Spring - Inner
GenV HyperGate45 Lite 5PSI Grey Spring - Inner
GenV HyperGate45 Lite 7PSI Pink Spring - Middle
GenV HyperGate45 Lite 14PSI Red Spring - Outer
GenV HyperGate45 Lite Sensor Cap Black
GenV HyperGate45 Lite Diaphragm Tool
GenV HyperGate45 Lite Weld Flange: Inlet (Alluminium)
GenV HyperGate45 Lite Weld Flange: Outlet (Alluminium)
1/8 NPT to -3AN Male Fittings
1/8 NPT to -4AN Male Fittings
1/8 NPT Straight Pushloc Fittings
1/8 NPT 90 Deg Pushloc Fittings
1/8 NPT T Piece Pushloc Fittings
Hi-Temp Pushloc Tubing 1/4" (3 Metres)
GenV Wastegate Press / Spring Change Tool
Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. Make sure it is set at a sensible & reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.
Can I use this on any turbocharged engine?
External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. External wastegates in most instances are a custom fitted item and require modifications to the factory exhaust manifold, or a custom / specifically manufactured manifold to suit an external wastegate.
What is a GenV Wastegate?
A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.
Do I have to use the liquid cooling ports?
No. The GenV External Wastegate boasts a number of design features which means it can tolerate higher temperatures for longer than it’s peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.
Why Does the Actuator housing Rotate?
So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be setup for the reference lines.
How do I change the springs?
You will need the locking collar tool supplied in the box and you will also need to apply physical force down on the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force is likely to damage the collar and potentially the actuator.
What size are the reference ports?
1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit which will get you going, however you’re welcome to use adaptors for AN or push lock fittings for more advanced installs.
This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?
The pressure rating in the description of a GenV external wastegate is the base mechanical pressure and we including all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note however this is just the lowest the gate can be setup for and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
