Pneumatic Straight Gate 6psi External Wastegate (Black)
$733.28USD (Excl. Sales Tax)

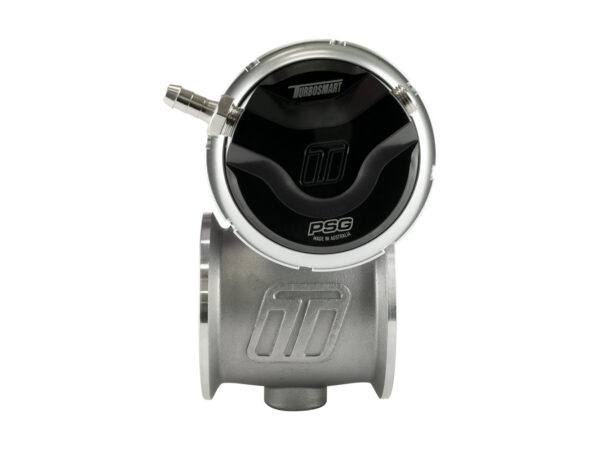

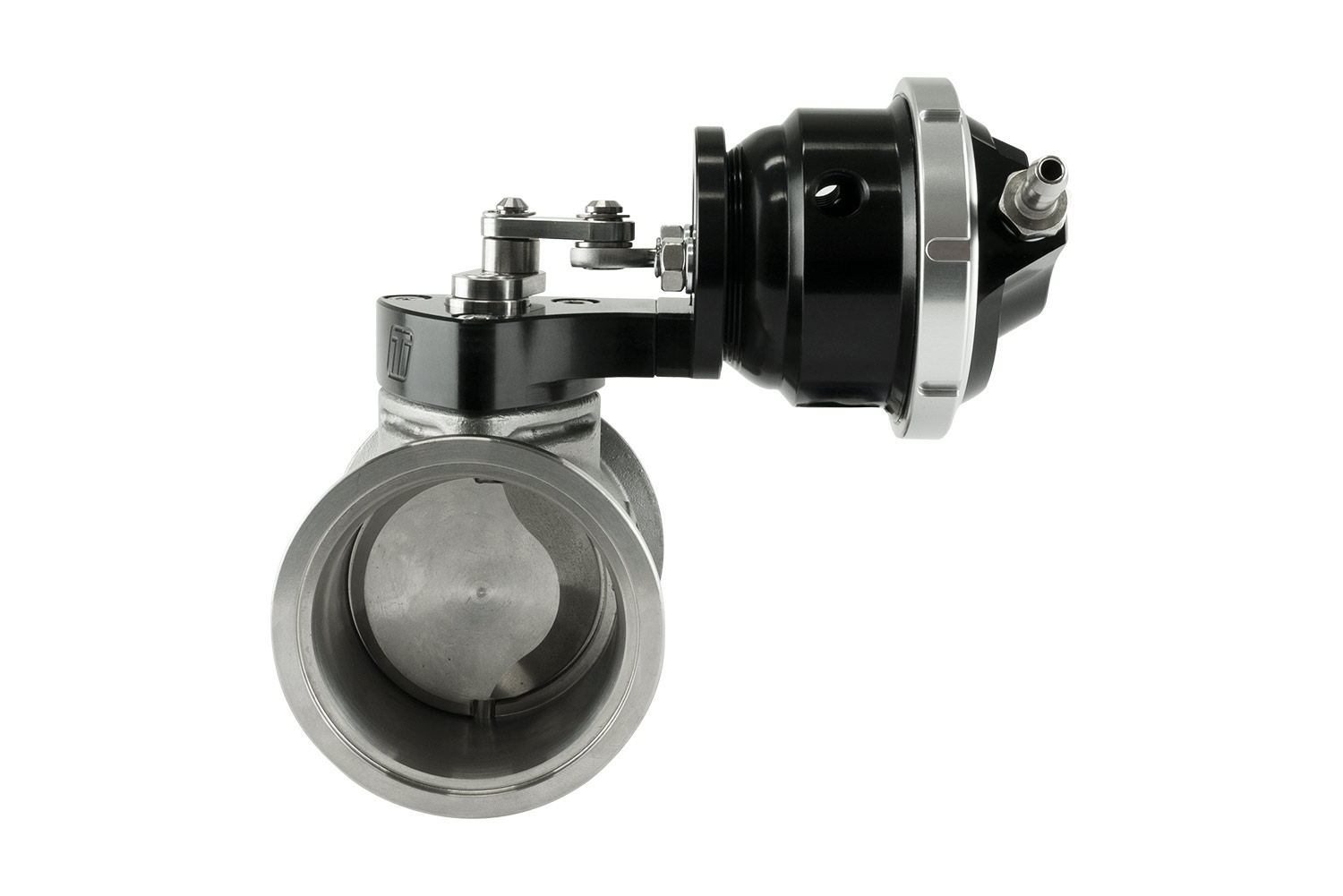

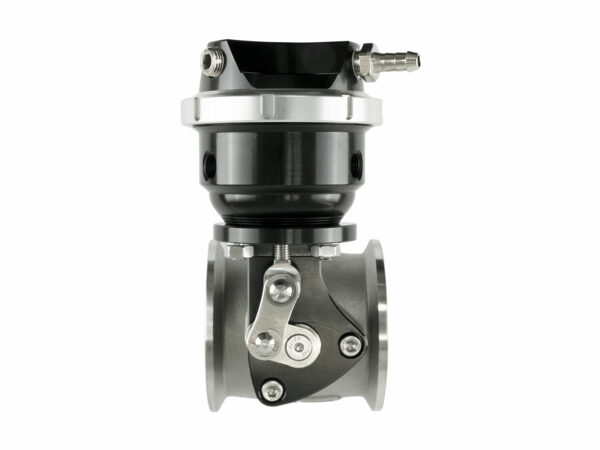

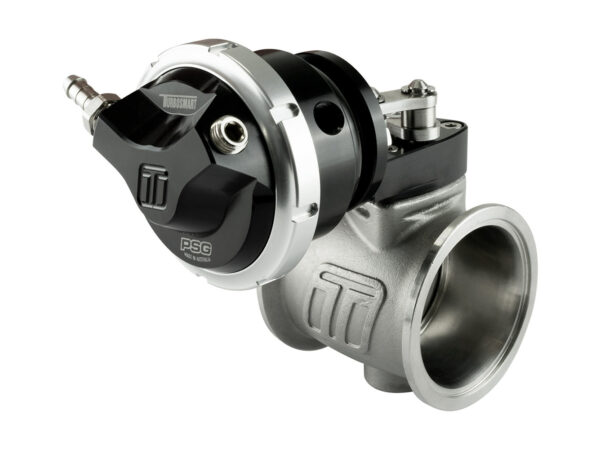

The StraightGate50 from Turbosmart is the world’s highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.
The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!
The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.
50mm (1.97in) Butterfly Style Zero-Offset Valve
383.9 CFM / 10.87m3 per minute flow
Stainless Steel (630) Butterfly and shaft
Stainless Steel (347) Main Body
Stainless Steel (Heat Treated 431) V-Band Clamps
Aluminium (6262 T6 Anodised) Bracket & Actuator
Turbosmart unique Locking Collar Ring
Base Spring Options from 6psi to 42psi
Suitable for Single or Twin Port Boost-Based Control
Stainless Steel (N60) Linkages & Control Arm
It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
This product does not have a CARB EO #; it is not legal for sale or use in CA on pollution controlled motor vehicles. This is intended as a "Race Only" product to be used solely for competition. It's use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization; any other use including recreational off-road use, may be a violation of local, state and federal laws. It is the buyer's responsibility to verify legal use of this product for the intended application and use.

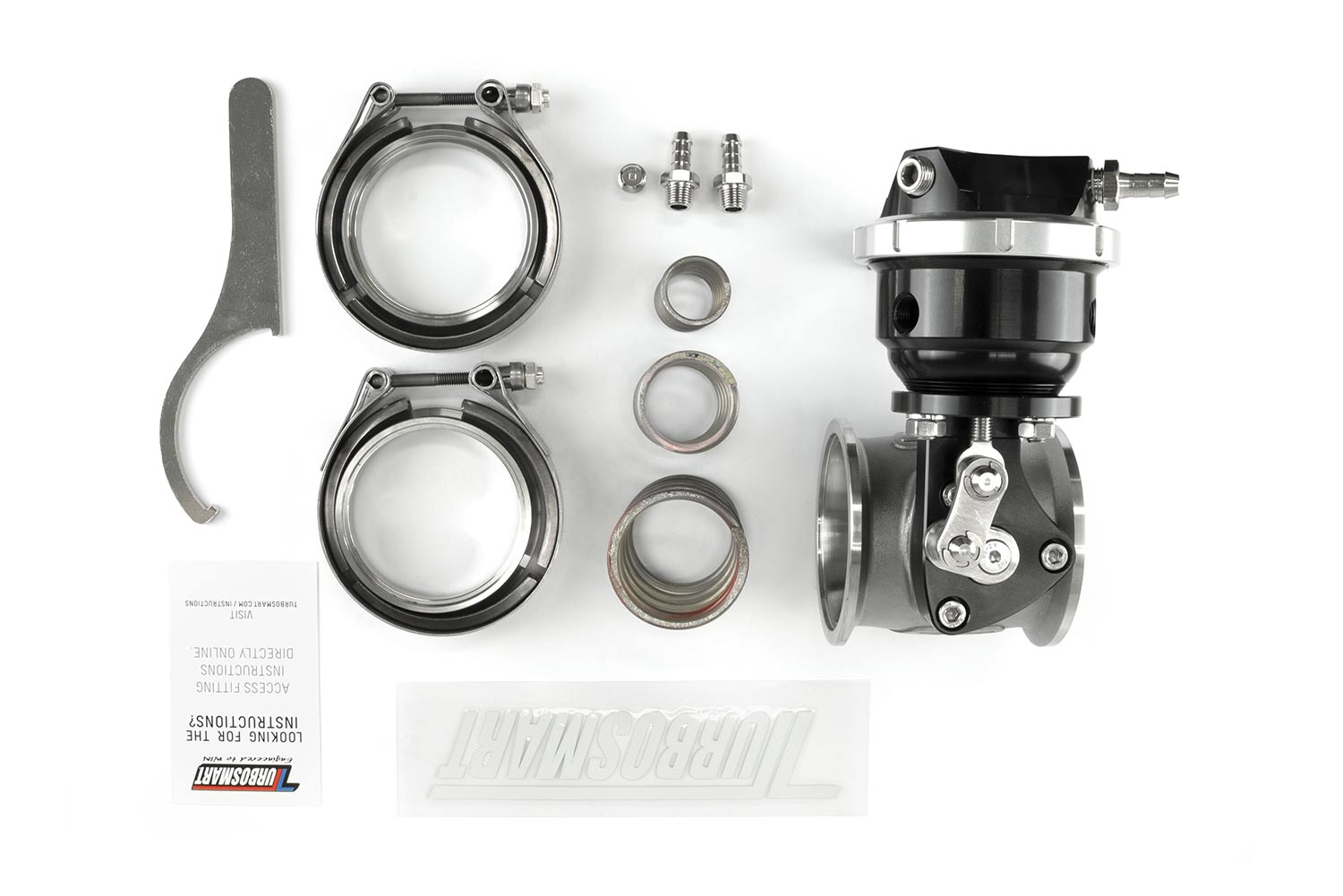

Boost-Based Pneumatic StraightGate50
StraihgtGate50 Inlet & Outlet Flanges
StraightGate50 Inlet & Outlet Weld Flanges
6psi Springs Pre-Installed
All Other Springs including in box
2 x 1/8 NPT Hose Tail Fittings
2 x 1/8 NPT Blanking Plugs
6psi Inner Spring
9psi Inner Spring
12psi Middle Spring
21psi Outer Spring
Inlet / Outlet V-Bands
Inlet / Outlet Weld Flanges
Replacement Locking Collar
1/8 NPT Hose Tail & Blank Kit
Replacement V-Band Nuts
GenV Hall Effect Position Sensor Upgrade Kit
1/8NPT to -4AN Adaptor
1/8NPT to -3AN Adaptor
Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. You can never be too careful. Make sure it is set to a sensible& reasonable limit. Increasing the boost will put more load on your engine, and you must consider other tune-related factors. If in any doubt, speak with a professional tuner/calibrator.
What is the StraightGate all about?
The StraightGate50 from Turbosmart is a butterfly-style external wastegate that uses a zero-offset and self-balancing butterfly valve to control exhaust gas flow. Unlike the traditional poppet-style valve, these wastegates both flow highly high amounts of gas thanks to the efficiency of such a valve, over a poppet style, but also much greater control. All wastegates have a dynamic performance where the flow can be measured against lift. A Poppet style generally has a relatively large flow at the initial opening and low lift, which hen tends to flatten out as the valve lifts. StriaghtGate50, by comparison, has a very linear flow versus opening angle, especially with greater resolution around the initial opening and low opening angles.
Yes. The StriaghtGate50 uses a zero-offset style butterfly valve, and this means that at any point in time, the exhaust gas energy applied to the valve is offset by the fact the force is being used to the side of the valve that opens as well as the side of the valve that closes. This effective force equals zero, meaning theoretically, no matter what force is applied, it is balanced with no effect on the valve position. This means the wastegate is massively easier to control, which means lighter springs can be used, a faster response can be achieved and better real-world performance and reliability.
Over 5 X Base Pressure?
Yes. Traditional Poppet style wastegates generally achieve 2-3 times the base spring pressure in overall pressure. For ten psi of base spring pressure, you can likely achieve between 20-30psi of overall pressure with reference manipulation and boost control. The StraightGate50, however, benefits from the self-balancing zero-offset butterfly valve and can provide a much larger tuning window. The StriaghtGate50 can achieve more than five times the base pressure, so for the same 10psi spring example above, you can expect over 50psi total boost with reference manipulation and boost control.
What do I need to Control them?
Unlike the Electronic StraightGate50, which requires an advanced control strategy, the Pneumatic Series of StraightGate50 requires fairly common control strategies. A simple Boost-Tee will run and make great results from the Boost-Based version, while the traditional Vacuum-Based method will work perfectly on the Vac-Based StriaghtGate50. It’s simple reference manipulation and controlled bleed – the kind of boost control that has been commonplace for decades.
What Mounting Options do I have?
There are design elements to ensure the least heat transfer possible into the diaphragm housing, and we have validated this to 1300 Degrees C with no impact on performance and reliability. The V-Band allows rotation through 360 degrees with no effect on valve operation. Furthermore, the Billet Actuator bracket can be clocked to any of the three options provided by the 3-pin mounting system, providing a huge range of mounting options to fit into even the most complex and packed modern engine bay. Like all things, however, the best way to mount the unit would be to acknowledge the basics. Exhausts and manifolds are hot & heat rises spots further away from the heat source, and where possible, below it (rather than directly on-top) is ideal if possible. Also, to note, even OEM actuators on turbocharged factory cars place actuators in front of the turbo, in a stream of engine bay air-flow, so offering your wastegate the same courtesy will ensure a long and trouble-free service life.
